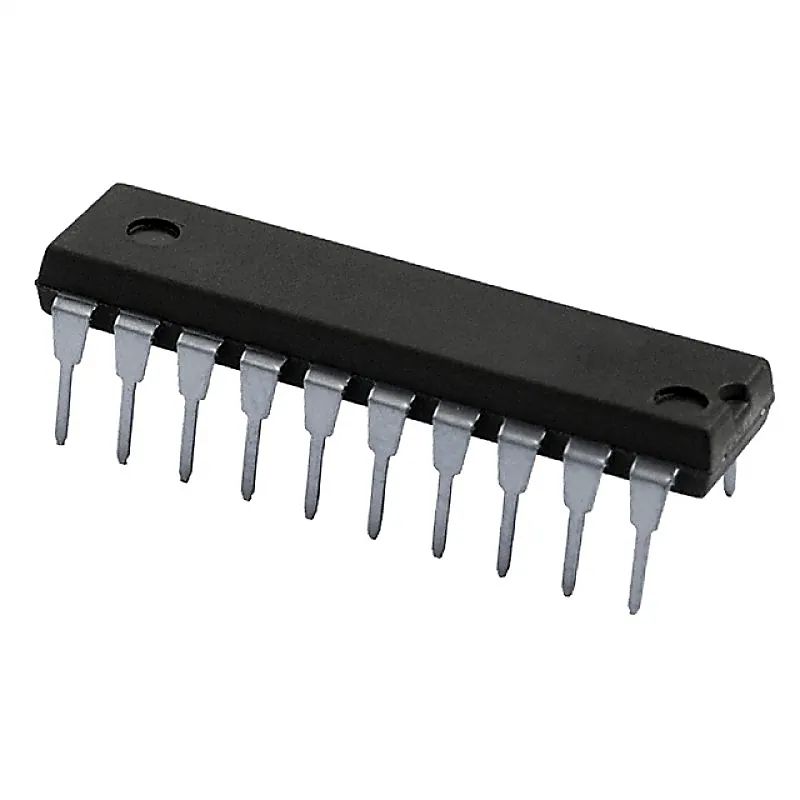

74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20 Package

The 74HC541 is an octal non-inverting buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A HIGH on OEn causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features:- • Non-Inverting outputs • Complies with JEDEC standard no. 7A • Input levels: CMOS level • For 74HCT541: TTL level ESD protection: HBM JESD22-A114F exceeds 2000 V and MM JESD22-A115-A exceeds 200 V • Multiple package options • Specified from -40 °c to +85 °c and from -40 °c to +125 ° c Specifications:- Parameter Specification Supply Voltage (VCC) − 0.5 to + 7.0V Input Clamping Current (IIK) ± 20 mA Output Voltage (VOUT) − 0.5 to VCC + 0.5V Output Clamping Current (IOK) ± 20 mA Output Current (IO) ± 35 mA DC VCC or GND Current, per pin (ICC, IGND) ± 70 mA Storage Temperature Range (TSTG) − 65°C to + 150°C Power Dissipation (PD) (Note 4) 500 mW Related Document:- 74HC541 IC Datasheet
