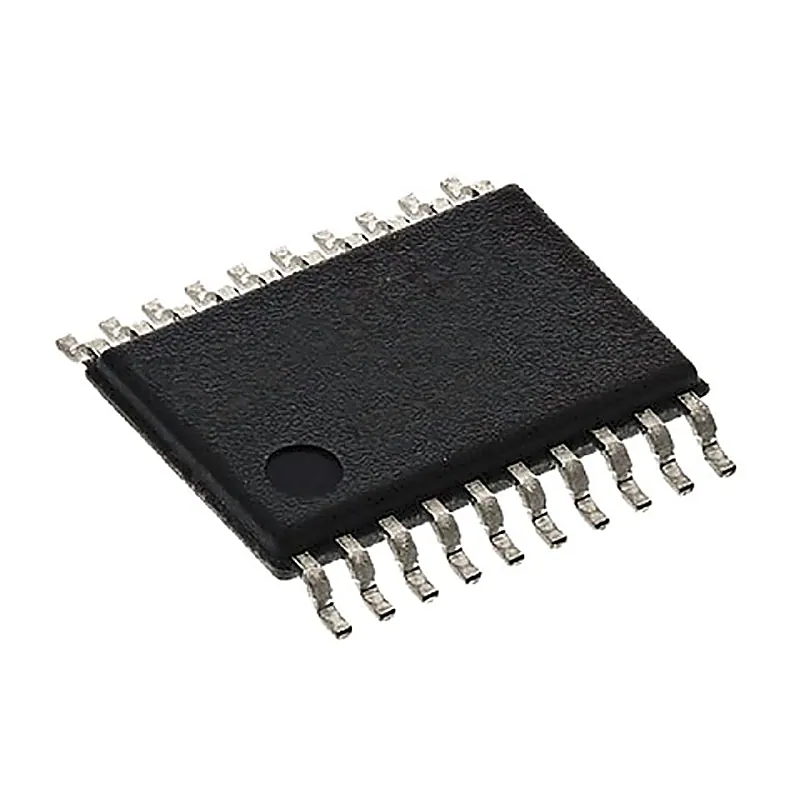

74HC541 IC - (SMD Package) - Octal 3-State Buffer/Line Driver IC (74541 IC)

The 74HC541 is an octal non-inverting buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A HIGH on OEn causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features:- • Non-Inverting outputs • Complies with JEDEC standard no. 7A • Input level: CMOS level • HBM JESD22-A114F exceeds 2000 V • MM JESD22-A115-A exceeds 200 V • Multiple package options • Specified from -40 ° C to +85 ° C and from -40 ° C to +125 ° C Specification:- Symbol Parameter Value Unit VCC Supply Voltage − 0.5 to + 7.0V V IIK DC Input Diode Current ±20 mA IOK DC Output Diode Current ±20 mA IO Output Current ± 35 mA ICC or IGND DC VCC or GND Current, per pin ± 75 mA TSTG Storage Temperature Range − 65°C to + 150 °C Ptot Power Dissipation 500 mW Related Document:- 74HC541 SMD Data Sheet
