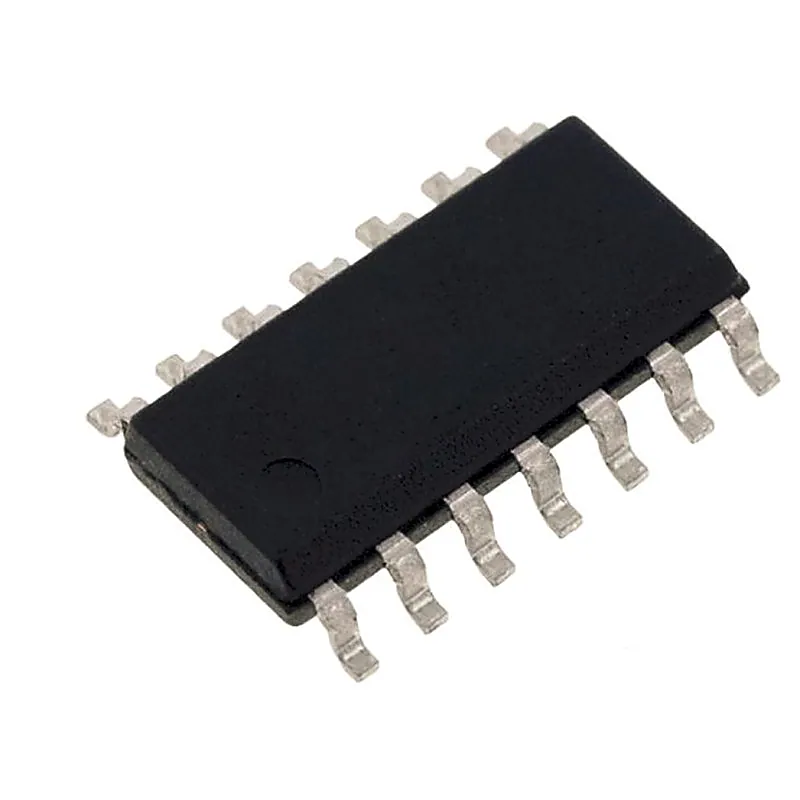

74LS05 IC - (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)
74LS05 IC - (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)
This device contains six independent gates each of which performs the logic INVERT function. The open-collector outputs require external pull-up resistors for proper logical operation. Features :- Six Independent INVERT Gates. Open Collector Outputs Require Pull-Up Resistors. Operating Temperature t
+ 18% GST (added at checkout)
In stock — 2673 units ready
- Six Independent INVERT Gates.
- Open Collector Outputs Require Pull-Up Resistors.
- Operating Temperature to 70°C.
- Standard TTL Switching Voltages.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This device contains six independent gates each of which performs the logic INVERT function. The open-collector outputs require external pull-up resistors for proper logical operation. Features :- Six Independent INVERT Gates. Open Collector Outputs Require Pull-Up Resistors. Operating Temperature to 70°C. Standard TTL Switching Voltages. Specifications :- Symbol Parameter Min Max Unit VCC Supply Voltage 4.75 5.25 V VIH HIGH Level Input Voltage 2 - V VIL LOW Level Input Voltage - 0.8 V VOH HIGH Level Output Voltage - 5.5 V IOL LOW Level Output Current - 8 mA TA Free Air Operating Temperature 0 70 °C Package Includes :- 1 X 74LS05 IC - (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)
