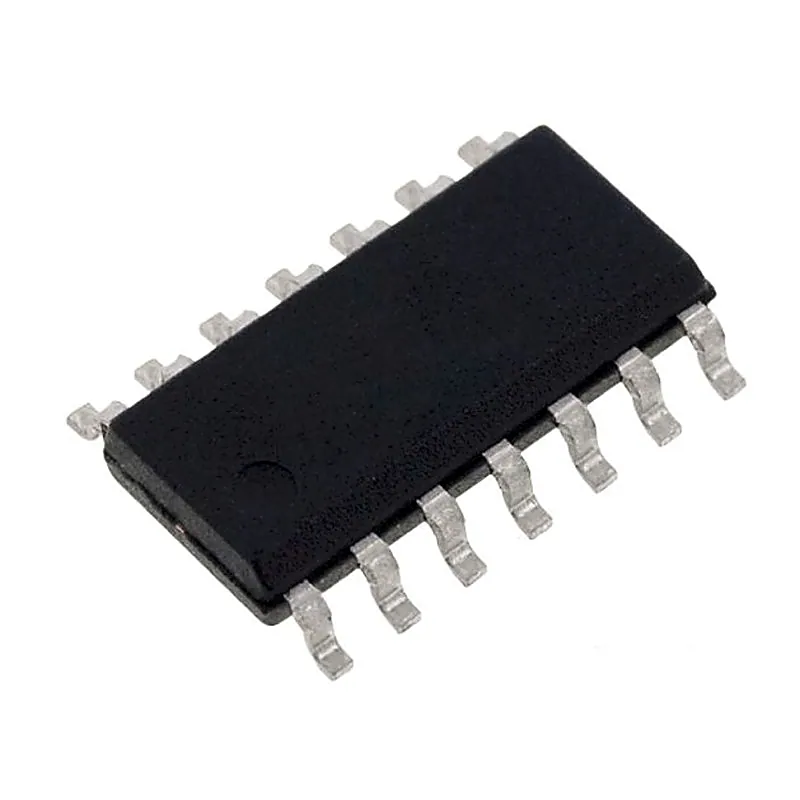

74LS06 IC - (SMD Package) - Hex Inverter -Buffer IC (7406 IC)
74LS06 IC - (SMD Package) - Hex Inverter -Buffer IC (7406 IC)
The 74LS06 SMD device contains hex inverted buffers with open-collector. It performs the Boolean function Y=A in positive Logic:- • High Output Voltage (30 V) • High Speed ( tPD = 8.5 ns typical) • Low Power Dissipation (PD = 18 mW per Gate) Specification:- Symbol Parameter Value Unit VCC Supply Vol
+ 18% GST (added at checkout)
In stock — 275 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74LS06 SMD device contains hex inverted buffers with open-collector. It performs the Boolean function Y=A in positive Logic:- • High Output Voltage (30 V) • High Speed ( tPD = 8.5 ns typical) • Low Power Dissipation (PD = 18 mW per Gate) Specification:- Symbol Parameter Value Unit VCC Supply Voltage 7 V VIN Input Voltage 5.5 V VOUT Output Voltage 30 V TSTG Storage Temperature Range -65 to +150 °C Related Document:- 74LS06 SMD Data Sheet
