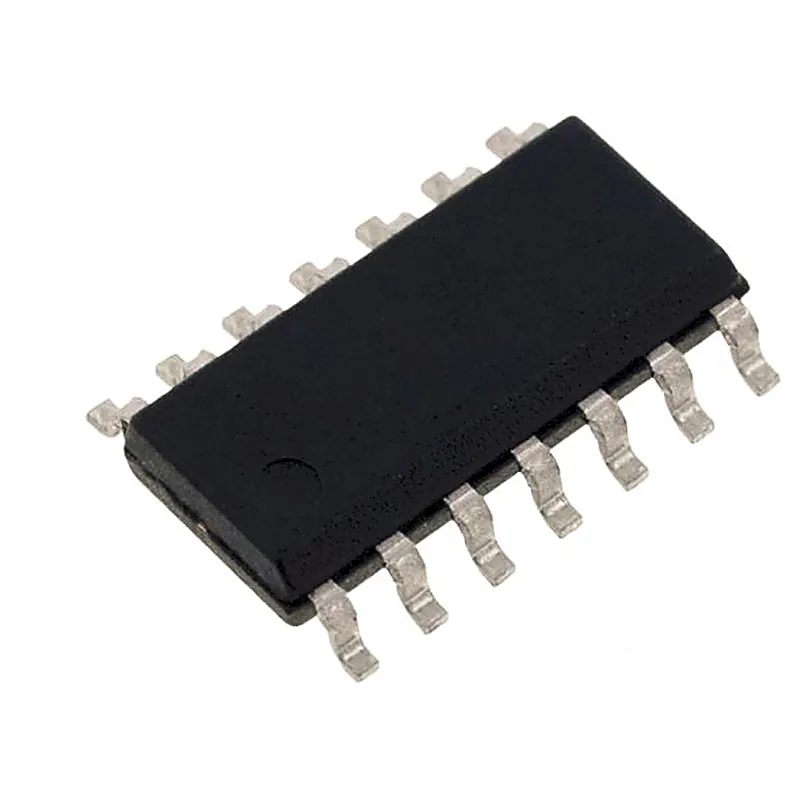

74LS125 IC - (SMD Package) Quad Tri-state Buffer IC (74125 IC)

This device contains four independent gates each of which performs a non-inverting buffer function. The outputs have the 3-STATE feature. When enabled, the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors. When disabled, both the output transistors are turned off presenting a high-impedance state to the bus line. Thus the output will act neither as a significant load nor as a driver. To minimize the possibility that two outputs will attempt to take a common bus to opposite logic levels, the disable time is shorter than the enable time of the outputs. Features:- • Four Independent Non-Inverting Buffer Gates • Enabled Mode • Fast Switching Times • Operating Temperature up to 70°C • Standard TTL Switching Voltages Specifications:- Parameter Specification Supply Voltage (VCC 7 V Input Voltage (VI) 7 V Operating free-air temperature range 0°C to +70°C Storage temperature range –65°C to +150°C Package Includes :- 1 X 74LS125 IC - (SMD Package) Quad Tri-state Buffer IC (74125 IC)
