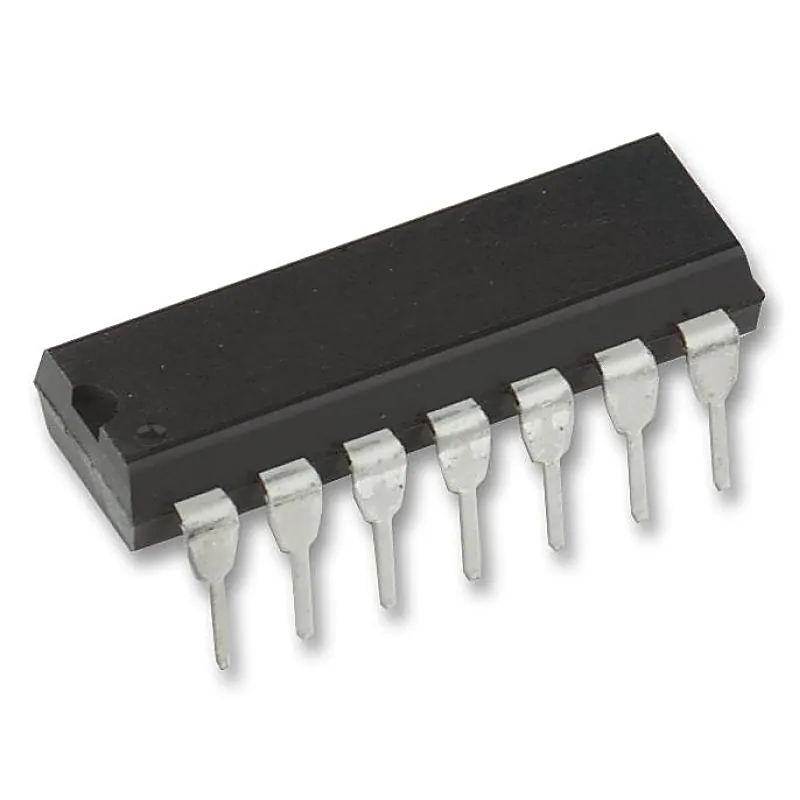

74LS14 Hex Schmitt Trigger Inverter IC (7414 IC) DIP-14 Package
74LS14 Hex Schmitt Trigger Inverter IC (7414 IC) DIP-14 Package
The 74LS14 contains six independent gates each of which performs the logic INVERT function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output. Features:- • Six Independent INVERT Gates • Standard Pin Conf
+ 18% GST (added at checkout)
In stock — 1790 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74LS14 contains six independent gates each of which performs the logic INVERT function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output. Features:- • Six Independent INVERT Gates • Standard Pin Configuration • Fast Switching Times • Operating Temperature up to 70°C • Standard TTL Switching Voltages Specifications:- Parameter Specification Supply Voltage (VCC) 7 V Input Voltage (VI) 7 V Operating free-air temperature range 0°C to +70°C Storage temperature range –65°C to +150°C Related Document:- 74LS14 IC Datasheet
