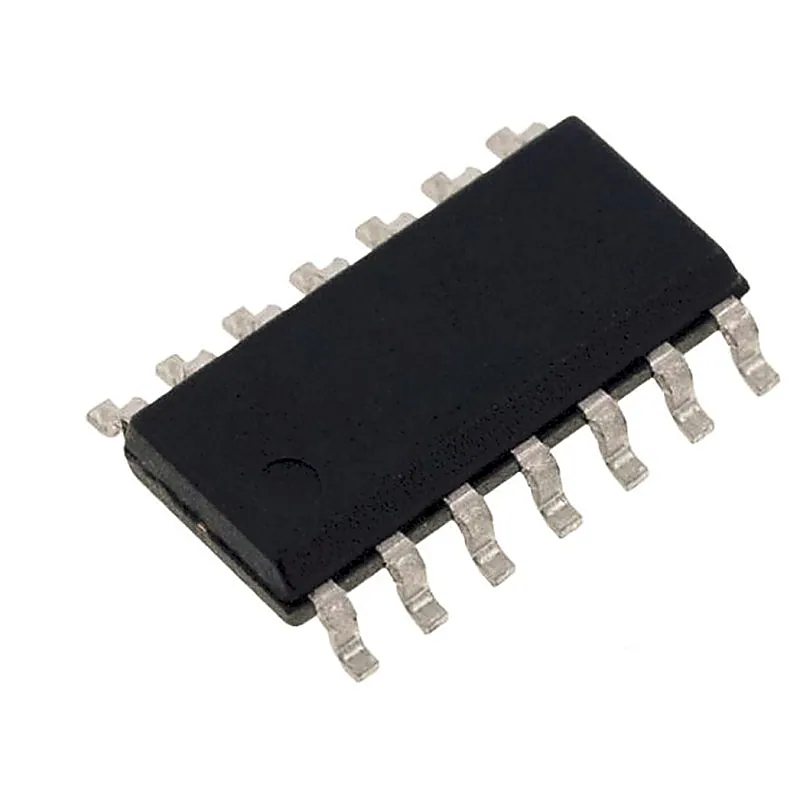

74LS15 IC - (SMD Package) Triple 3-InputT AND Gate IC (7415 IC)

The 74LS15 is a three-input positive-AND gate IC with three separate inputs built in low-power. The logic AND function is performed by each of the three separate gates in this device. They use positive logic to perform the Boolean functions Y = A • B • C. This IC is designed to operate at temperatures ranging from 55°C to 125°C, which is the complete military temperature range. The 74HC logic family is pin-out compatible with the 74LS logic family of high grade. It features a 4.5V to 5.5V supply voltage range. The 74LS15 has a strong noise immunity and, as a result, can drive TTL loads. Internal diode clamps to VCC and ground protect all inputs from static discharge damage. The AND gate designed as a basic digital logic gate that implements logical conjunction. An AND gate operates on logical multiplication rules. If all the inputs to the AND gate are HIGH, then the output will be high. If none or not all inputs to the AND gate are HIGH, results in LOW output. Applications:- Combining power good signals Enable digital signals Specification:- Supply Voltage : 4.5 to 5.5 Operating Ambient Temperature Range : -55 to 125 Output Voltage - High : 5.5 Output Current - Low : 4.0 Input HIGH Voltage : 2.0 Input LOW Voltage : 0.8 Package Includes:- 1 X 74LS15 IC - (SMD Package) Triple 3-InputT AND Gate IC (7415 IC)
