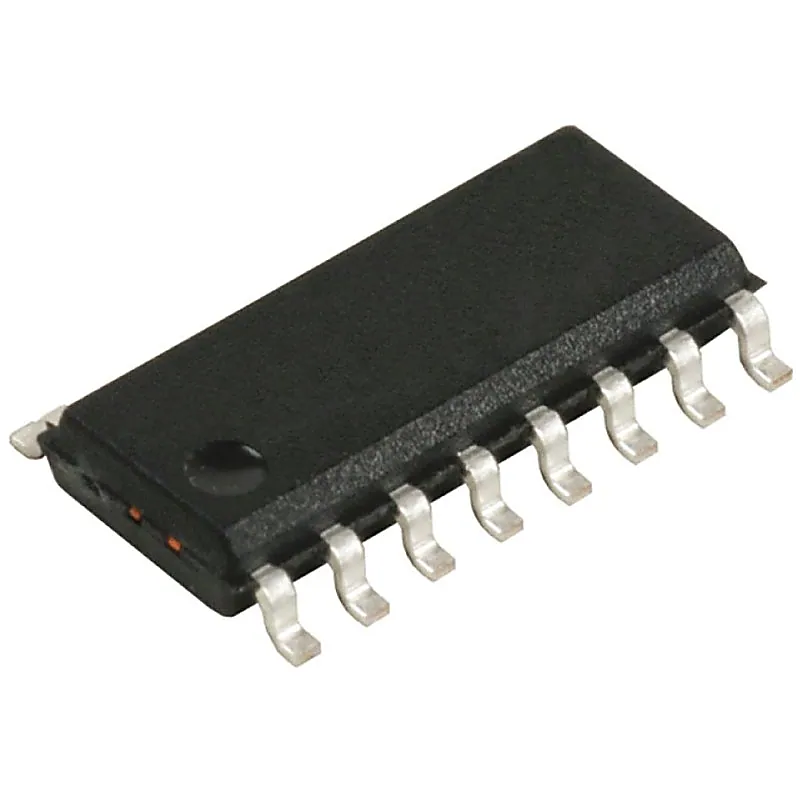

74LS151 IC - (SMD Package) 8-Input Digital Multiplexer IC (74151 IC)

This data selector/multiplexer contains full on-chip decoding to select the desired data source. The 74LS151 selects one-of-eight data sources. The 74LS151 has a strobe input which must be at a low logic level to enable these devices. A high level at the strobe forces the W output HIGH, and the Y output LOW. The 74LS151 features complementary W and Y outputs. Features :- Select one-of-eight data lines Performs parallel-to-serial conversion Permits multiplexing from N lines to one line Also for use as Boolean function generator Typical average propagation delay time data input to W output 12.5 ns Typical power dissipation 30mW Specifications :- Supply Voltage : 4.75 - 5.25V LOW Level Input Voltage : 0.8V HIGH Level Output Current : -0.4mA LOW Level Output Current : 8mA Free Air Operating Temperature : 70°C Package Includes :- 1 X 74LS151 IC - (SMD Package) 8-Input Digital Multiplexer IC (74151 IC)
