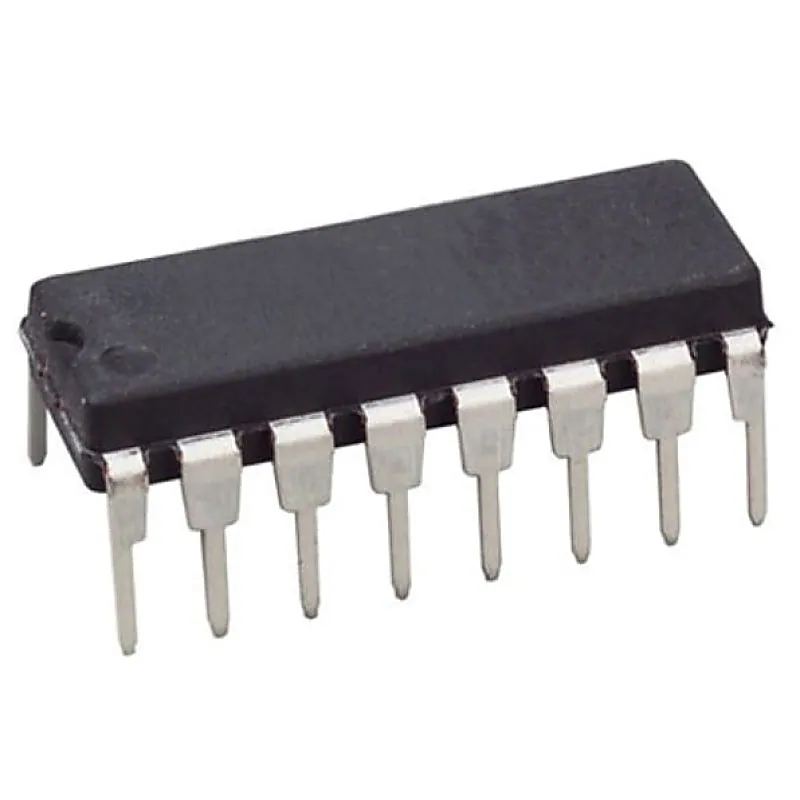

74LS153 Dual 1-of-4 Line Data Selector/Multiplexer IC (74153 IC) DIP-16 Package
74LS153 Dual 1-of-4 Line Data Selector/Multiplexer IC (74153 IC) DIP-16 Package
In 74LS153 IC, Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections. Features:- • Permits multiplexing fro
+ 18% GST (added at checkout)
In stock — 1649 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
In 74LS153 IC, Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections. Features:- • Permits multiplexing from N lines to 1 line • Performs at parallel-to-serial conversion • Strobe (enable) line provided for cascading (N lines to n lines) • High fan-out, low impedance, totem pole outputs • Typical average propagation delay times From data 14 ns From strobe 19 ns From select 22 ns • Typical power dissipation 31 mW Specifications:- Parameter Specification Supply Voltage (VCC) 7 V Input Voltage (VI) 7 V Operating free-air temperature range 0°C to +70°C Storage temperature range –65°C to +150°C Related Document:- 74LS153 IC Datasheet
