74LS157 Quad 2-input Multiplexer IC (74157 IC) DIP-16 Package

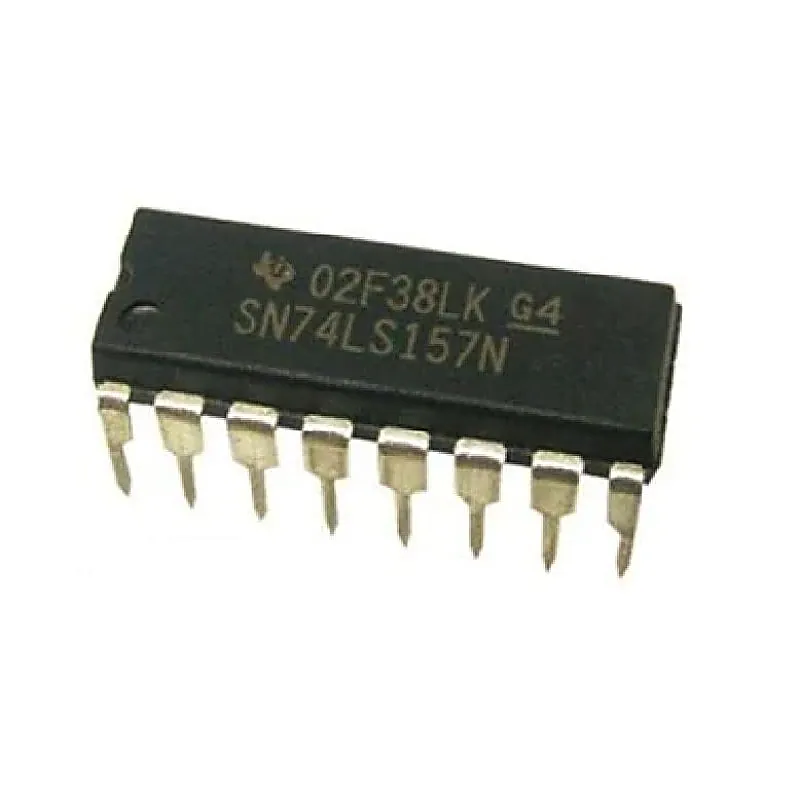

74LS157 Quad 2-input multiplexer IC (74157 IC) DIP-16 Package The 74LS157 is a high speed Quad 2-Input Multiplexer. Four bits of data from two sources can be selected using the common Select and Enable inputs. The four buffered outputs present the selected data in the true (non-inverted) form. The LS157 can also be used to generate any four of the 16 different functions of two variables. The LS157 is fabricated with theSchottky barrier diode process for high speed and is completely compatible with all Motorola TTL families. Schottky Process for High Speed Multifunction Capability Non-Inverting Outputs Input Clamp Diodes Limit High Speed Termination Effects Special Circuitry Ensures Glitch Free Multiplexing ESD > 3500 Volts Applications:- Expand Any Data Input Point Multiplex Dual Data Buses Generate Four Functions of two Variables ( One Variable is common) Source Programmable Counters Specifications:- Series : 74LS Type : Multiplexer Circuit : 4 x 2:1 Independent Circuits : 1 Voltage Supply Source : Single Supply Input Current : 0.8 mA Powering Current : 16 mA Propagation Delay : 9 ns Temperature Range : -65 °C - 150 °C Voltage – Supply : 4.75V ~ 5.25V Operating Temperature : 0C ~ 70C Package / Case : Through Hole Supplier Device Package : 16-PDIP Base Product Number : 74LS157 Package Includes:- 1 x 74LS157 Quad 2-input multiplexer IC (74157 IC) DIP-16 Package
