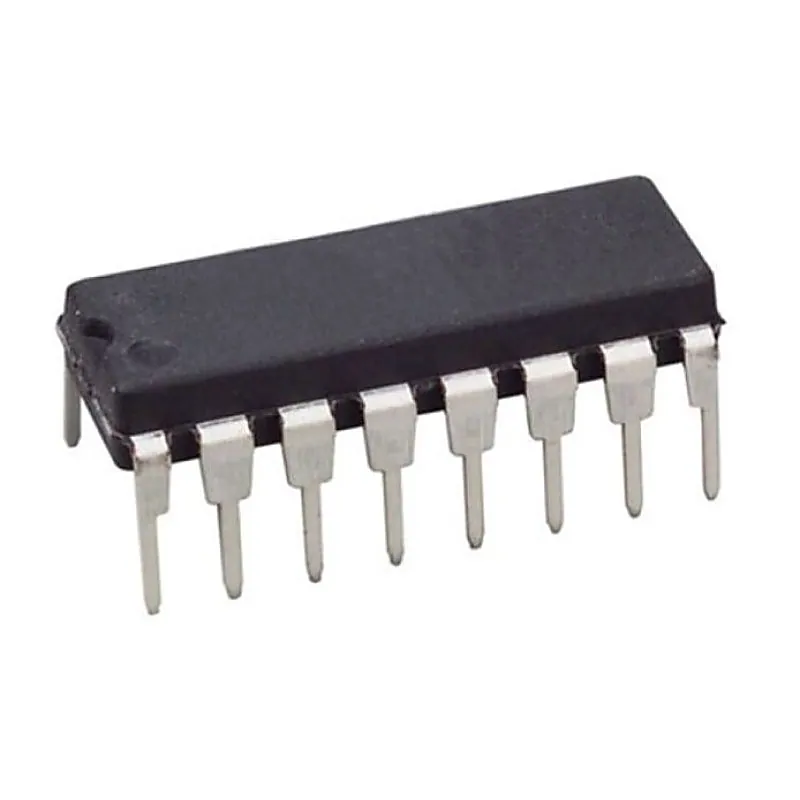

74LS158 Quad 2 -Input Multiplexer IC (74158) DIP-16 Package

The 74LS158 is a high speed Quad 2-input Multiplexer. It selects four bits of data from two sources using the common Select and Enable inputs. The four buffered outputs present the selected data in the inverted form. The LS158 can also generate any four of the 16 different functions of two variables. The LS158 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families Features :- Schottky Process for High Speed Multifunction Capability Inverted Outputs Input Clamp Diodes Limit High Speed Termination Effects ESD > 3500 Volts Special Circuitry Ensures Glitch Free Multiplexing Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V Input Clamp Diode Voltage : -1.5V Output HIGH Voltage : 3.5V Output LOW Voltage : 0.5V Short Circuit Current : -100mA Package Includes :- 1 X 74LS158 Quad 2 -Input Multiplexer IC (74158) DIP-16 Package
