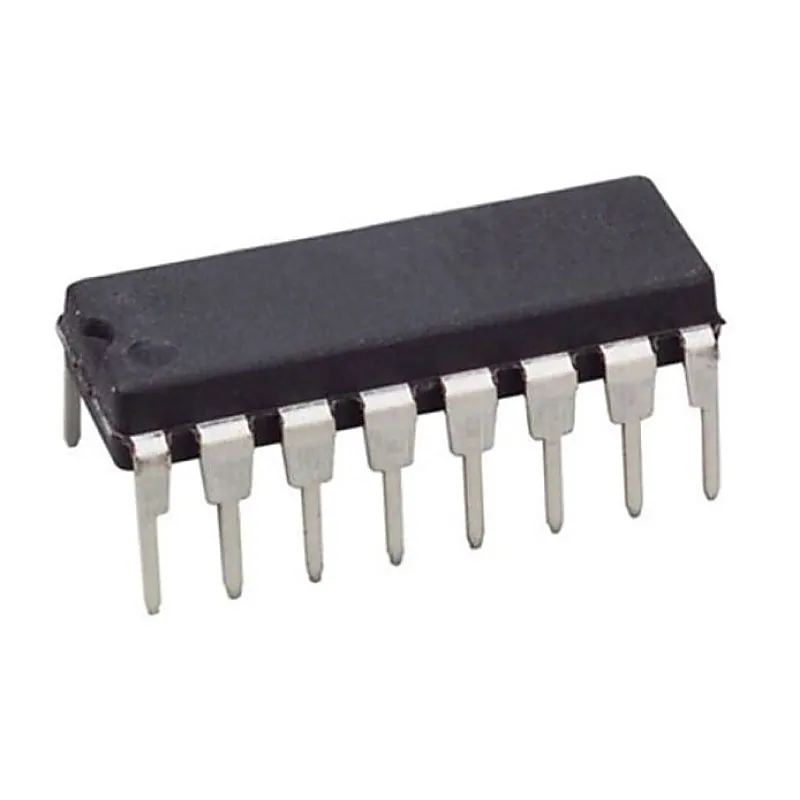

74LS175 Quad D Flip-Flop IC (74175) DIP-16 Package

The 74LS175 is a high speed Quad D Flip-Flop. The device is useful for general flip-flop requirements where clock and clear inputs are common. The information on the D inputs is stored during the LOW to HIGH clock transition. Both true and complemented outputs of each flip-flop are provided. A Master Reset input resets all flip-flops, independent of the Clock or D inputs, when LOW. The LS175 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families. Features :- Edge-Triggered D-Type Inputs Buffered-Positive Edge-Triggered Clock Clock to Output Delays of 30 ns Asynchronous Common Reset True and Complement Output Input Clamp Diodes Limit High Speed Termination Effects Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V Input Clamp Diode Voltage : -1.5V Output HIGH Voltage : 3.5V Output LOW Voltage : 0.5V Short Circuit Current : -100mA Power Supply Current : 18mA Package Includes :- 1 X 74LS175 Quad D Flip-Flop IC (74175) DIP-16 Package
