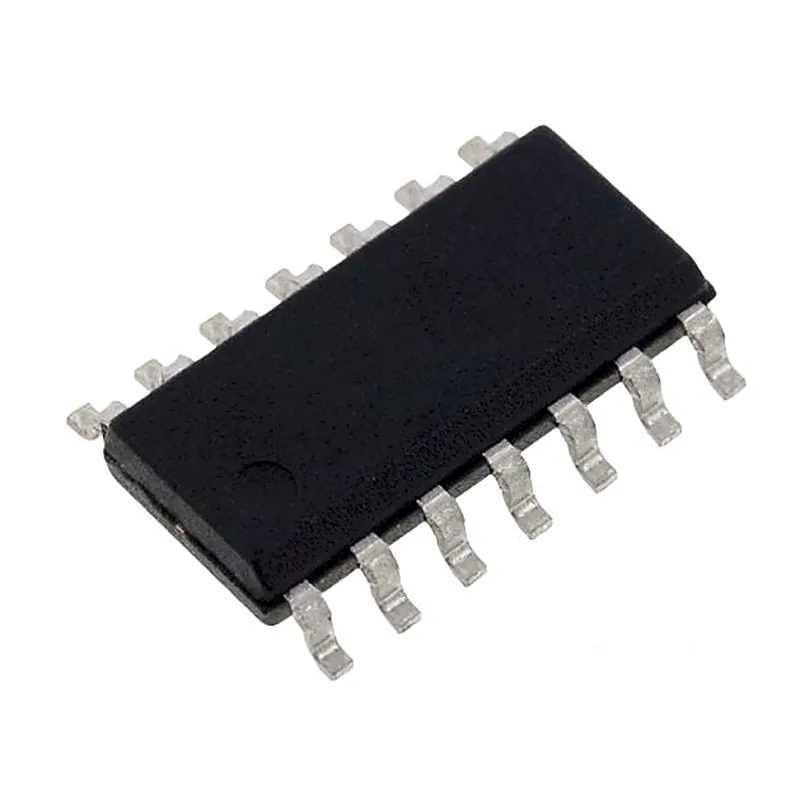

74LS20 IC - (SMD Package) - Dual 4-input NAND Gate IC (7420 IC)
74LS20 IC - (SMD Package) - Dual 4-input NAND Gate IC (7420 IC)
The 74LS20 device contains two independent gates each of which performs the logic NAND function. The 74LS20 feature is an alternate Military/Aerospace device is available. Contact a National Semiconductor Sales Office/ Distributor for specifications. Specification:- Symbol Parameter Min Nom Max Unit
+ 18% GST (added at checkout)
In stock — 545 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74LS20 device contains two independent gates each of which performs the logic NAND function. The 74LS20 feature is an alternate Military/Aerospace device is available. Contact a National Semiconductor Sales Office/ Distributor for specifications. Specification:- Symbol Parameter Min Nom Max Units VCC Supply Voltage 4.5 5 5.5 V TA Operating Ambient Temperature Range -55 25 125 °C IOH Output Current — High –0.4 m A IOL High-level Output Current 8 m A Related Document:- 74LS20 SMD Datasheet
