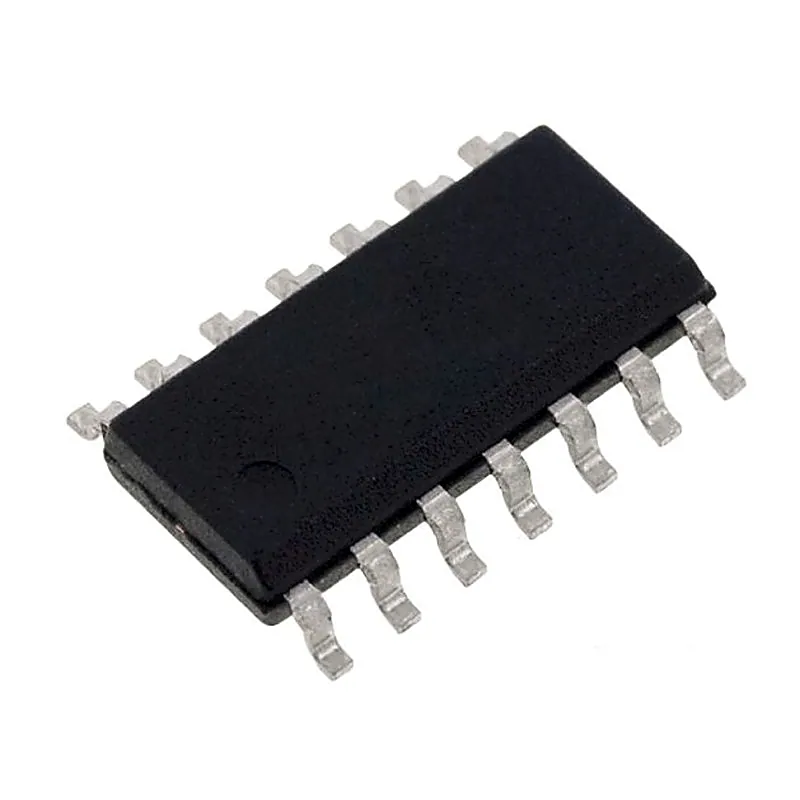

74LS21 IC - (SMD Package) - Dual 4-input AND Gate IC (7421 IC)
74LS21 IC - (SMD Package) - Dual 4-input AND Gate IC (7421 IC)
The 74LS21 device contains two independent gates each of which performs the logic NAND function. The 74LS21 feature is an alternate Military/Aerospace device is available. Contact a National Semiconductor Sales Office/ Distributor for specifications. Specification:- Symbol Parameter Min Nom Max Unit
+ 18% GST (added at checkout)
In stock — 712 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74LS21 device contains two independent gates each of which performs the logic NAND function. The 74LS21 feature is an alternate Military/Aerospace device is available. Contact a National Semiconductor Sales Office/ Distributor for specifications. Specification:- Symbol Parameter Min Nom Max Units VCC Supply Voltage 4.5 5 5.5 V TA Operating Ambient Temperature Range -55 25 125 °C IOH Output Current — High –0.4 m A IOL High-level Output Current 8 m A Related Document:- 7 4LS21 SMD Datasheet
