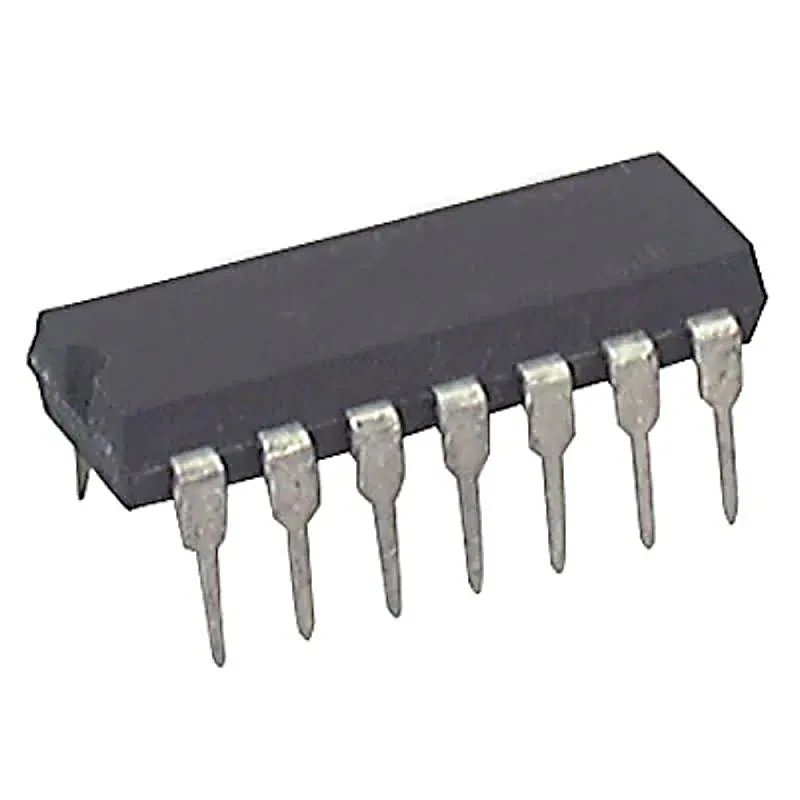

74LS243 3-State Quad Bus Transceiver IC (74243) DIP-14 Package
74LS243 3-State Quad Bus Transceiver IC (74243) DIP-14 Package
This four data line transceiver is designed for a synchro-nous two-way communications between data buses. It can be used to drive terminated lines down to 133Ω Features :- Two-way a synchronous communication between data buses PNP inputs reduce DC loading on bus line Hysteresis at data inputs improv
+ 18% GST (added at checkout)
In stock — 2459 units ready
- Two-way a synchronous communication between data buses
- PNP inputs reduce DC loading on bus line
- Hysteresis at data inputs improves noise margin
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- HIGH Level Output Current : -15mA
- LOW Level Output Current : 24
- Free Air Operating Temperature : 70°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This four data line transceiver is designed for a synchro-nous two-way communications between data buses. It can be used to drive terminated lines down to 133Ω Features :- Two-way a synchronous communication between data buses PNP inputs reduce DC loading on bus line Hysteresis at data inputs improves noise margin Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V HIGH Level Output Current : -15mA LOW Level Output Current : 24 Free Air Operating Temperature : 70°C Package Includes :- 1 X 74LS243 3-State Quad Bus Transceiver IC (74243) DIP-14 Package
