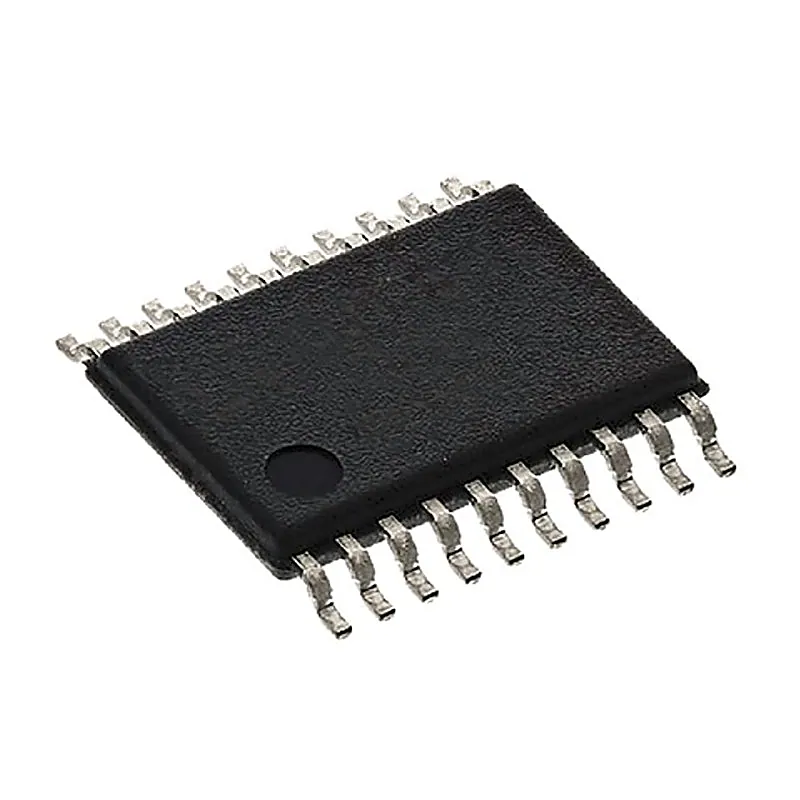

74LS244 IC - (SMD Package) - Octal Buffer/Line Driver with Tri-State Output IC (74244 IC)

The 74LS244 buffers/line drivers are designed to improve both the performance and PC board density of 3-STATE buffers/ drivers employed as memory-address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fan out outputs and can be used to drive terminated lines down to 133Ω. Features:- • 3-STATE outputs drive bus lines directly • PNP inputs reduce DC loading on bus lines • Hysteresis at data inputs improves noise margins • Typical IOL (sink current) 24 mA • Typical IOH (source current) −15 mA • Typical propagation delay times Inverting 10.5 ns Noninverting 12 ns • Typical enable/disable time 18 ns • Typical power dissipation (enabled) Inverting 130 mW Noninverting 135 mW Specification:- Parameter Values Supply Voltage 7V Input Voltage 7V Operating Free Air Temperature Range 0°C to +70°C Storage Temperature Range −65°C to +150°C Related Document:- 74LS244 SMD Datasheet
