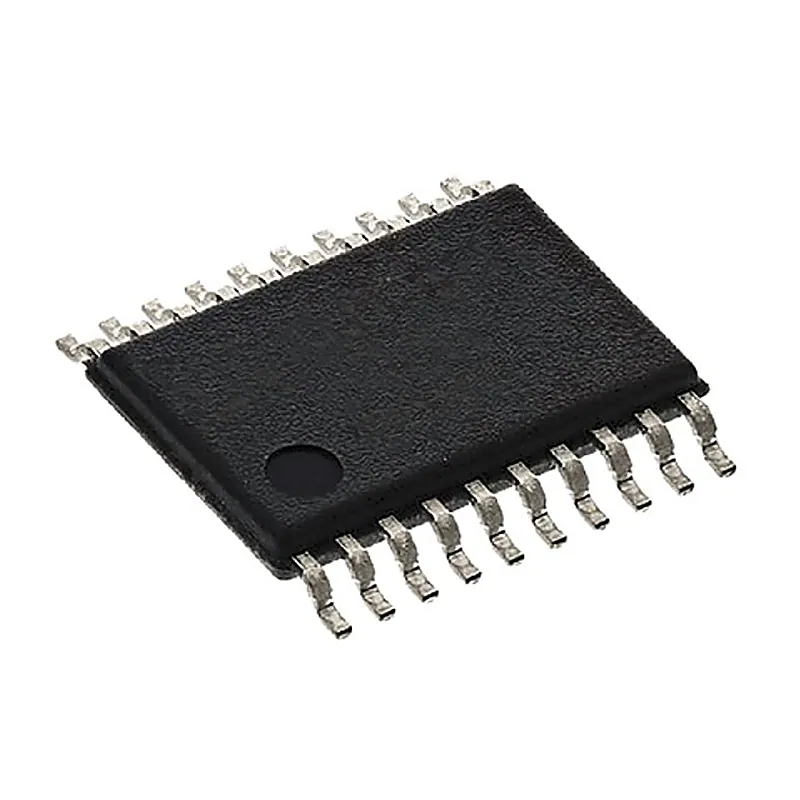

74LS245 IC - (SMD Package) - Octal Bus Transceiver IC (74245 IC)

The 74LS245 SMD is an Octal Bus Transmitter/Receiver designed for 8-line asynchronous 2-way data communication between data buses. Direction Input (DR) controls transmission of Data from bus A to bus B or bus B to bus A depending upon its logic level. The Enable input (E) can be used to isolate the buses. The following are the features:- • Hysteresis Inputs to Improve Noise Immunity • 2-Way Asynchronous Data Bus Communication • Input Diodes Limit High-Speed Termination Effects • ESD > 3500 Volts Specification:- Symbol Parameter Min Type Max Units VCC Supply Voltage 4.75 5 5.25 V TA Operating Ambient Temperature Range 0 25 70 °C IOH Output Current — High -3 m A -15 m A IOL Output Current — Low 24 m A Related Document:- 74LS245 SMD Data Sheet
