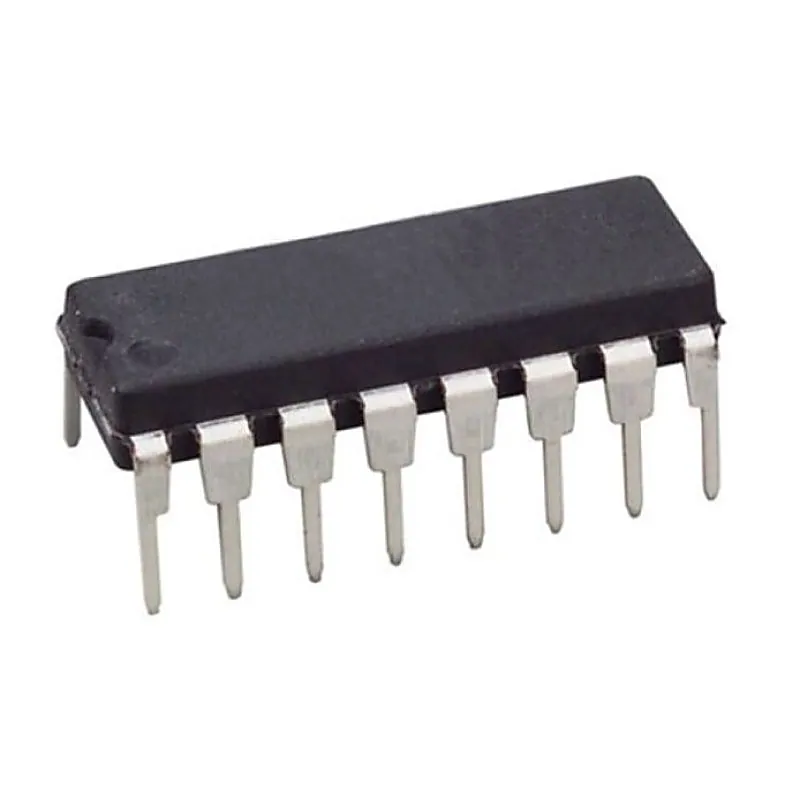

74LS258 3-State Quad 2-Input Multiplexer IC (74258) DIP-16 Package

The 74LS258 are Quad 2-Input Multiplexers with 3-state outputs. Four bits of data from two sources can be selected using a Common Data Select input. The four outputs present the selected data in true (non-inverted) form. The outputs may be switched to a high impedance state with a HIGH on the common Output Enable (EO) Input, allowing the outputs to interface directly with bus oriented systems. Features :- Schottky Process For High Speed Multiplexer Expansion By Tying Outputs Together Non-Inverting 3-State Outputs Input Clamp Diodes Limit High Speed Termination Effects Special Circuitry Ensures Glitch Free Multiplexing ESD > 3500 Volts Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V Input Clamp Diode Voltage : -1.5V Output HIGH Voltage : 3.1V Output LOW Voltage : 0.5V Short Circuit Current : -130mA Package Includes :- 1 X 74LS258 3-State Quad 2-Input Multiplexer IC (74258) DIP-16 Package
