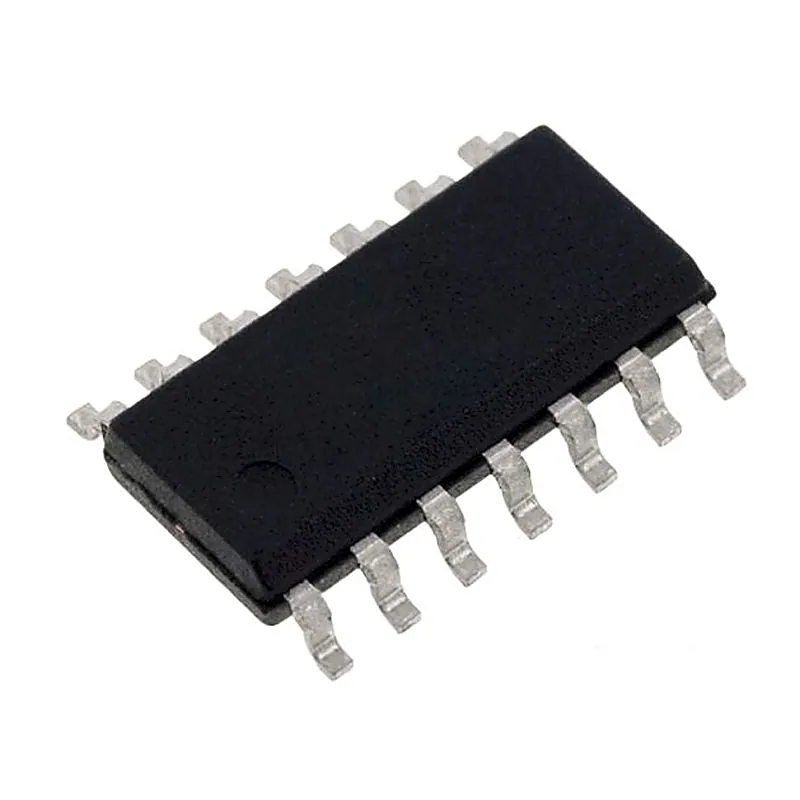

74LS27 IC - (SMD Package) - Triple 3-input NOR Gate IC (7427 IC)
74LS27 IC - (SMD Package) - Triple 3-input NOR Gate IC (7427 IC)
The 74LS27 is a triple 3-Input Nor Gate Low Power Schottky. The following are the features:- Three Independent NOR Gates Standard Pin Configuration Fast Switching Times Operating Temperature up to 70°C Standard TTL Switching Voltages Specification:- Symbol Parameter Min Nom Max Units VCC Supply Volt
+ 18% GST (added at checkout)
In stock — 337 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74LS27 is a triple 3-Input Nor Gate Low Power Schottky. The following are the features:- Three Independent NOR Gates Standard Pin Configuration Fast Switching Times Operating Temperature up to 70°C Standard TTL Switching Voltages Specification:- Symbol Parameter Min Nom Max Units VCC Supply Voltage 4.5 5 5.5 V TA Operating Ambient Temperature Range -55 25 125 °C IOH Output Current — High –0.4 m A IOL High-level Output Current 8 m A Related Document:- 74LS27 SMD Data Sheet
