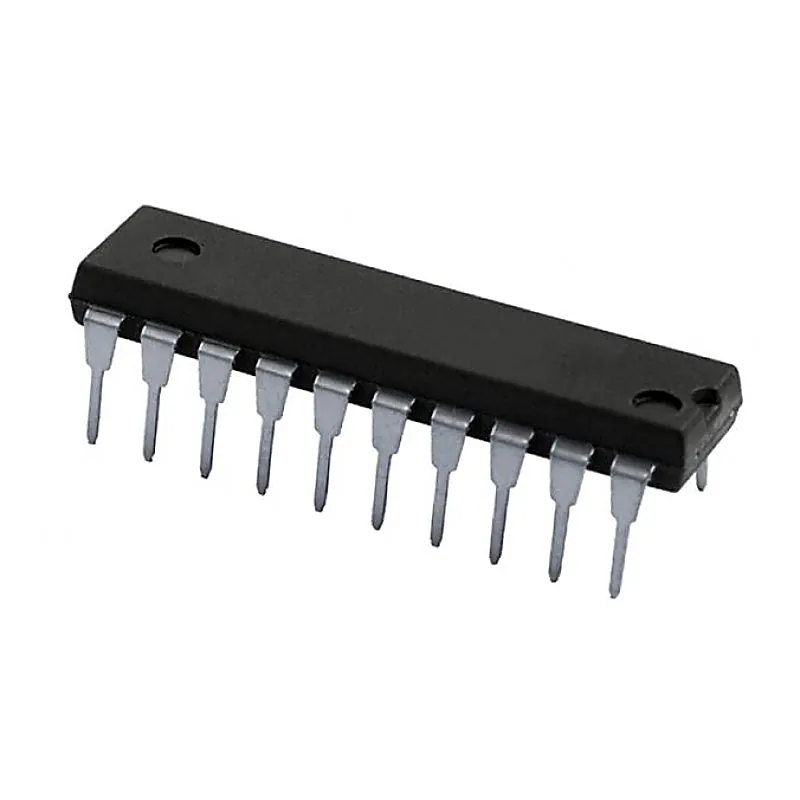

74LS273 Octal D-type Flip-Flop with Reset IC (74273) DIP-20 Package

These monolithic, positive-edge-triggered flipflops utilize TTL circuitry to implement D-type flip-flop logic with a direct clear input. Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock input is at either the high or low level, the D input signal has no effect ar the output. These flip-flops are guaranteed to respond to clock frequencies ranging form 0 to 30 megahertz while maximum clock frequency is typically 40 megahertz. Typical power dissipation is 39 milliwatts per flip-flop for the ′273 and 10 milliwatts for the ′LS273. Features :- Contains Eight Flip-Flops With Single-Rail Outputs Buffered Clock and Direct Clear Inputs Individual Data Input to Each Flip-Flop Specifications :- Supply Voltage : 4.75 - 5.25V High-level output current : -800µA Low-level output current : 16mA Clock frequency : 30MHz Width of clock or clear pulse : 16.5ns Package Includes :- 1 X 74LS273 Octal D-type Flip-Flop with Reset IC (74273) DIP-20 Package
