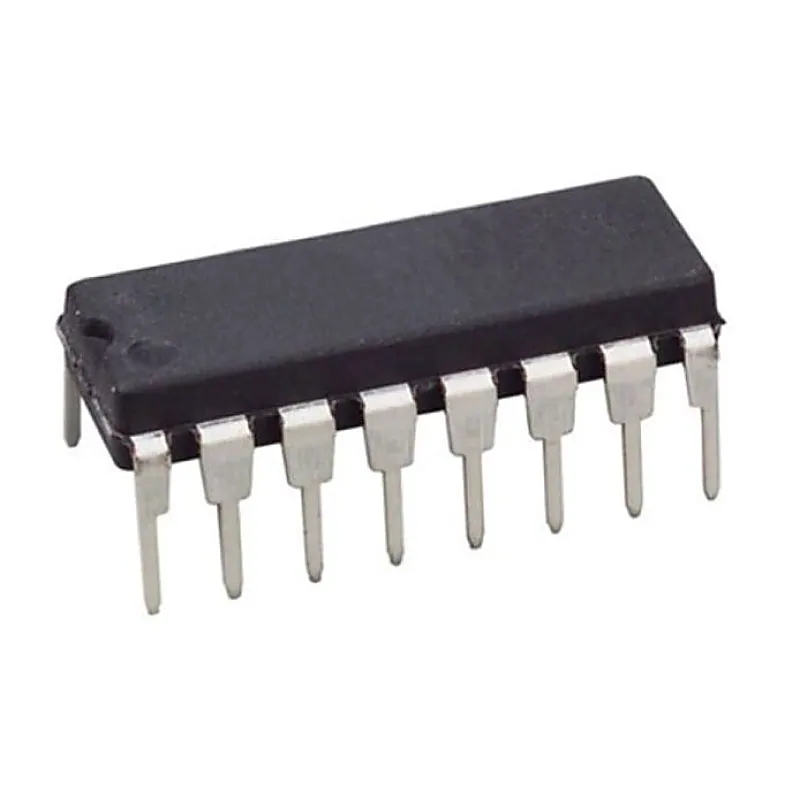

74LS298 Quad 2-Input Multiplexer IC (74298) DIP-16 Package

The 74LS298 is a Quad 2-Port Register. It is the logical equivalent of a quad 2-input multiplexer followed by a quad 4-bit edge-triggered register. A Common Select input selects between two 4-bit input ports (data sources.) The selected data is transferred to the output register synchronous with the HIGH to LOW transition of the Clock input. The LS298 is fabricated with the Schottky barrier process for high speed and is completely compatible with all ON Semiconductor TTL families Features :- Select From Two Data Sources Fully Edge-Triggered Operation Typical Power Dissipation of 65mW Input Clamp Diodes Limit High Speed Termination Effects Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V Input Clamp Diode Voltage : -1.5V Output LOW Voltage : 0.5V Short Circuit Current : -100mA Package Includes :- 1 X 74LS298 Quad 2-Input Multiplexer IC (74298) DIP-16 Package
