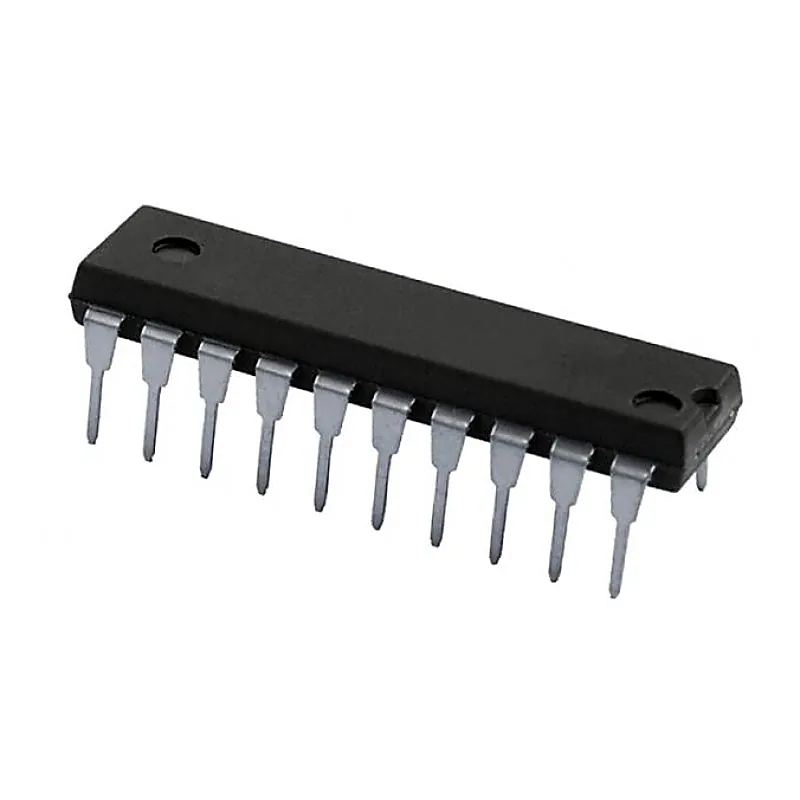

74LS299 8-Input Universal Shift/Storage Register IC (74299) DIP-20 Package
74LS299 8-Input Universal Shift/Storage Register IC (74299) DIP-20 Package
The 74LS299 is an 8-bit universal shift/storage register with 3-STATE outputs. Four modes of operation are possible: hold (store), shift left, shift right and load data. The parallel load inputs and flip-flop outputs are multiplexed to reduce the total number of package pins. Separate outputs are pr
+ 18% GST (added at checkout)
In stock — 2250 units ready
- Common I/O for reduced pin count
- Four operation modes: shift left, shift right, load and store
- Separate shift right serial input and shift left serial input for easy cascading
- 3-STATE outputs for bus oriented applications
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- HIGH Level Output Current : -0.4mA
- LOW Level Output Current : 24mA
- Free Air Operating Temperature : 70°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74LS299 is an 8-bit universal shift/storage register with 3-STATE outputs. Four modes of operation are possible: hold (store), shift left, shift right and load data. The parallel load inputs and flip-flop outputs are multiplexed to reduce the total number of package pins. Separate outputs are provided for flip-flops Q0 and Q7 to allow easy cascading. A separate active LOW Master Reset is used to reset the register Features :- Common I/O for reduced pin count Four operation modes: shift left, shift right, load and store Separate shift right serial input and shift left serial input for easy cascading 3-STATE outputs for bus oriented applications Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V HIGH Level Output Current : -0.4mA LOW Level Output Current : 24mA Free Air Operating Temperature : 70°C Package Includes :- 1 X 74LS299 8-Input Universal Shift/Storage Register IC (74299) DIP-20 Package
