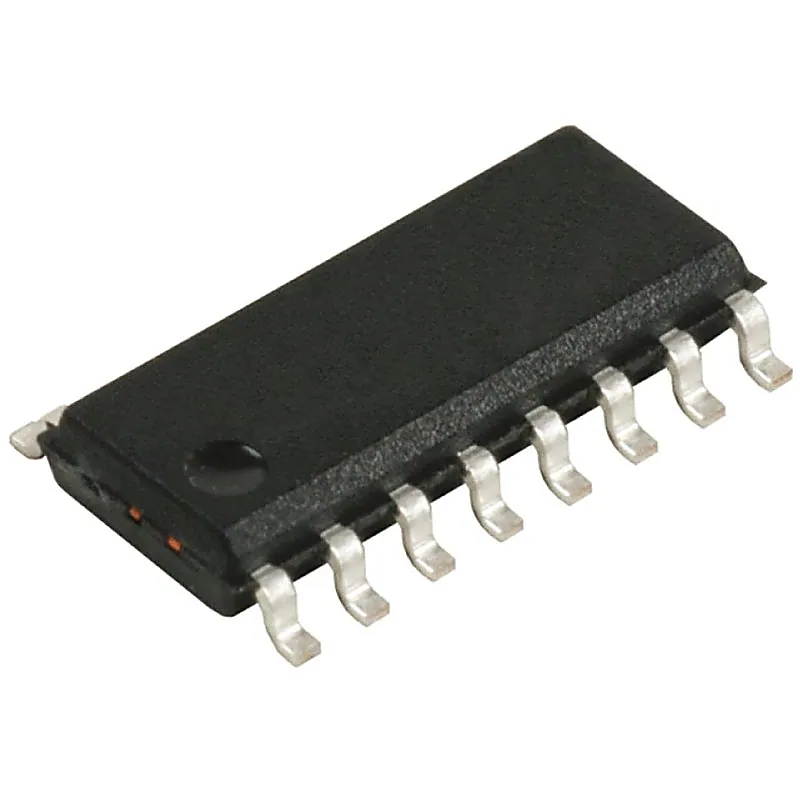

74LS31 IC - (SMD Package) Hex Delay Line Generator IC (7431 IC)
74LS31 IC - (SMD Package) Hex Delay Line Generator IC (7431 IC)
These LS31 delay elements are intended to provide well-defined delays across both temperature and VCC ranges. Used in cascade, a limitless range of delay gating is possible. All inputs are PNP with IL MAX of -0.2 mA. Gates 1, 2, 5, and 6 have standard Low-Power Schottky output sink current capabilit
+ 18% GST (added at checkout)
In stock — 2266 units ready
- Delay Elements for Generating Delay Lines
- Inverting and Non-inverting Elements
- Buffer NAND Elements Rated at JOL of 12/24 mA
- PNP Inputs Reduce Fan-In (IIL=-0.2 mA MAX)
- Worst Case MIN/MAX Delays Guaranteed Across Temperature and VCC Ranges
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
These LS31 delay elements are intended to provide well-defined delays across both temperature and VCC ranges. Used in cascade, a limitless range of delay gating is possible. All inputs are PNP with IL MAX of -0.2 mA. Gates 1, 2, 5, and 6 have standard Low-Power Schottky output sink current capability of 4 and 8 mA IOL Buffers 3 and 4 are rated at 12 and 24 mA. The 74LS31 is characterized for operation from 0°C to 70°C Features :- Delay Elements for Generating Delay Lines Inverting and Non-inverting Elements Buffer NAND Elements Rated at JOL of 12/24 mA PNP Inputs Reduce Fan-In (IIL=-0.2 mA MAX) Worst Case MIN/MAX Delays Guaranteed Across Temperature and VCC Ranges Specifications :- Symbol Parameter Min Max Unit VCC Supply Voltage 4.75 5.25 V VIH HIGH Level Input Voltage 2 - V VIL LOW Level Input Voltage - 0.8 V VOH HIGH Level Output Voltage - -0.4 V IOL LOW Level Output Current - 8 mA TA Free Air Operating Temperature 0 70 oC Package Includes :- 1 X 74LS31 IC - (SMD Package) Hex Delay Line Generator IC (7431 IC)
