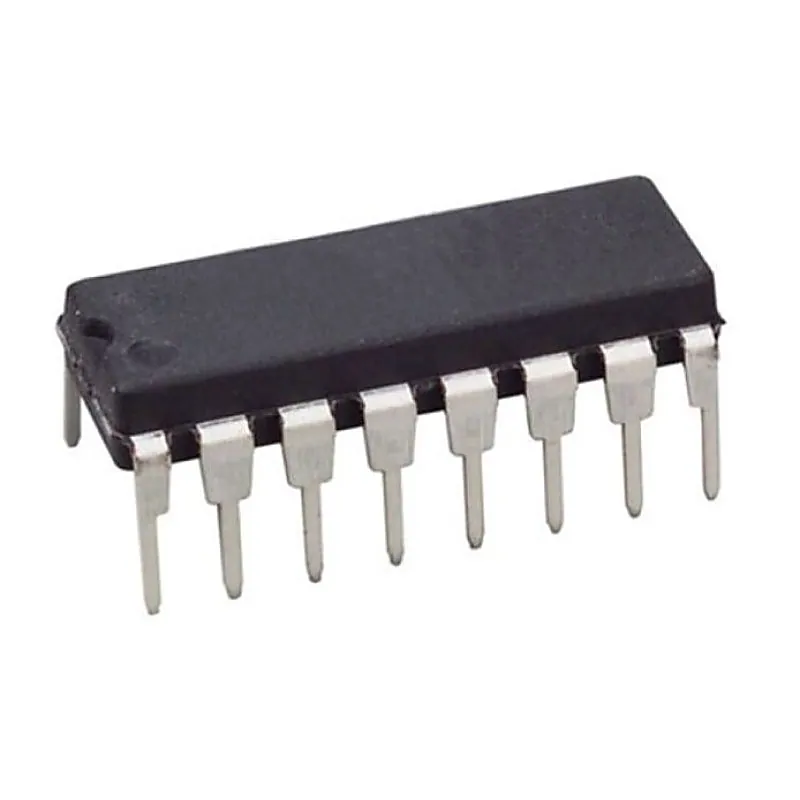

74LS352 Dual 4-input Multiplexer IC (74352) DIP-16 Package
74LS352 Dual 4-input Multiplexer IC (74352) DIP-16 Package
Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections Features :- Inverting version of DM54/74LS153 Permits
+ 18% GST (added at checkout)
In stock — 1858 units ready
- Inverting version of DM54/74LS153
- Permits multiplexing from N lines to 1 line
- Performs parallel-to-serial conversion
- Strobe (enable) line provided for cascading (N lines to n lines)
- High fan-out, low-impedance, totem-pole outputs
- Typical power dissipation 31mW
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- High Level Output Current : -0.4mA
- Low Level Output Current : 8mA
- Free Air Operating Temperature : 70°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections Features :- Inverting version of DM54/74LS153 Permits multiplexing from N lines to 1 line Performs parallel-to-serial conversion Strobe (enable) line provided for cascading (N lines to n lines) High fan-out, low-impedance, totem-pole outputs Typical power dissipation 31mW Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V High Level Output Current : -0.4mA Low Level Output Current : 8mA Free Air Operating Temperature : 70°C Package Includes :- 1 X 74LS352 Dual 4-input Multiplexer IC (74352) DIP-16 Package
