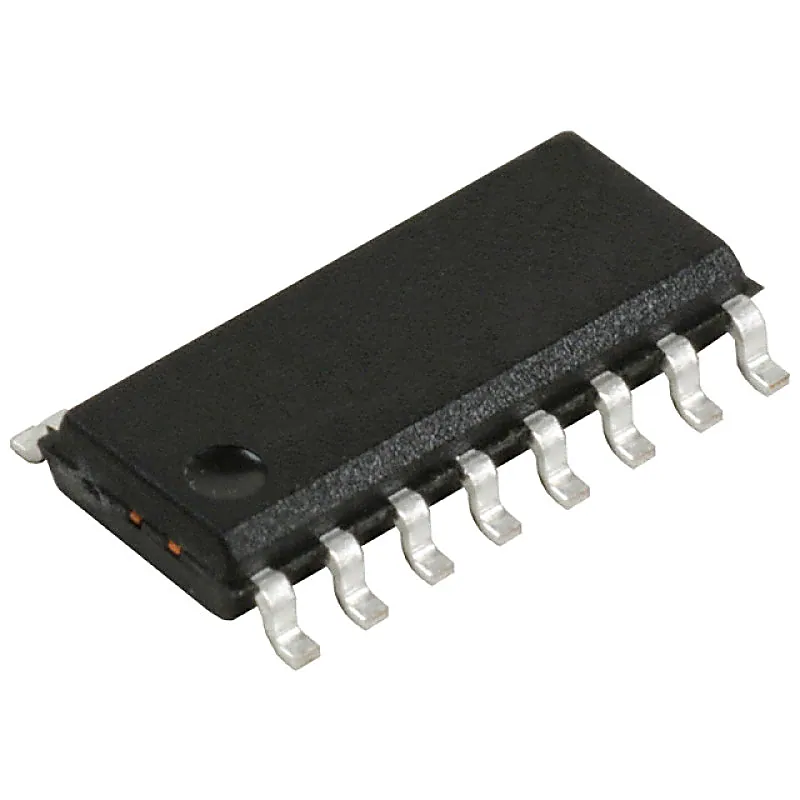

74LS368 IC - (SMD Package) - 3-State Hex Bus Drivers IC (74368 IC)
74LS368 IC - (SMD Package) - 3-State Hex Bus Drivers IC (74368 IC)
These Hex buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus oriented receivers and transmitters. The designer has choice of selected combinations of inverting and noninverting outputs, symmetri
+ 18% GST (added at checkout)
In stock — 2086 units ready
- Hex Buffers with Improved Performance
- 3-State Outputs Drive Bus Lines
- Choice of True or Inverting Outputs
- Operating Temperature up to 70°C
- Standard TTL Switching Voltages
- Supply Voltage : 4.75 - 5.25V
- HIGH Level Input Voltage : 2.0V
- LOW Level Input Voltage : 0.8V
- HIGH Level Output Current : -5.2mA
- LOW Level Output Current : 32mA
- Free Air Operating Temperature : 70°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
These Hex buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus oriented receivers and transmitters. The designer has choice of selected combinations of inverting and noninverting outputs, symmetrical G (active-low control) inputs. These devices feature high fan-out, improved fan-in, and can be used to drive terminated lines down to 133 ohms. Features :- Hex Buffers with Improved Performance 3-State Outputs Drive Bus Lines Choice of True or Inverting Outputs Operating Temperature up to 70°C Standard TTL Switching Voltages Specifications :- Supply Voltage : 4.75 - 5.25V HIGH Level Input Voltage : 2.0V LOW Level Input Voltage : 0.8V HIGH Level Output Current : -5.2mA LOW Level Output Current : 32mA Free Air Operating Temperature : 70°C Package Includes :- 1 X 74LS368 IC - (SMD Package) - 3-State Hex Bus Drivers IC (74368 IC)
