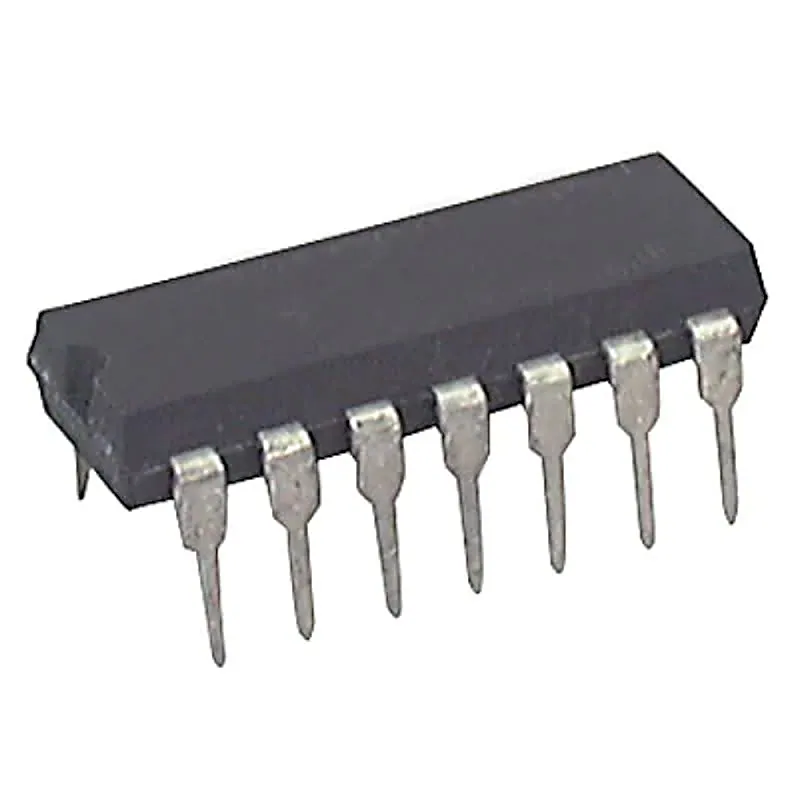

74LS37 Quadruple 2-Input Positive-NAND Buffers IC (7437 IC) DIP-14 Package

These 8-bit registers feature totem-pole TRI-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. The high-impedance state and increased high-logic level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pull-up components. They are particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. Applications :- Burglar alarm or theft alarm Freezer warning buzzer Light activated theft alarm Automatic watering system Specifications :- Quadruple 2-Input Positive-NAND Buffer High-level input voltage: 2V Low-level input voltage: 0.8V High-level output current: -1.2mA Low-level output current: 24mA Input clamp voltage: -1.5V No. of gates: 4 No. of inputs: 8 No. of outputs: 4 Propagation delay time: 24ns Supply voltage range: 4.75 to 5.25V Package: DIP-14 Package Includes :- 1 X 74LS37 Quadruple 2-Input Positive-NAND Buffers IC (7437 IC) DIP-14 Package
