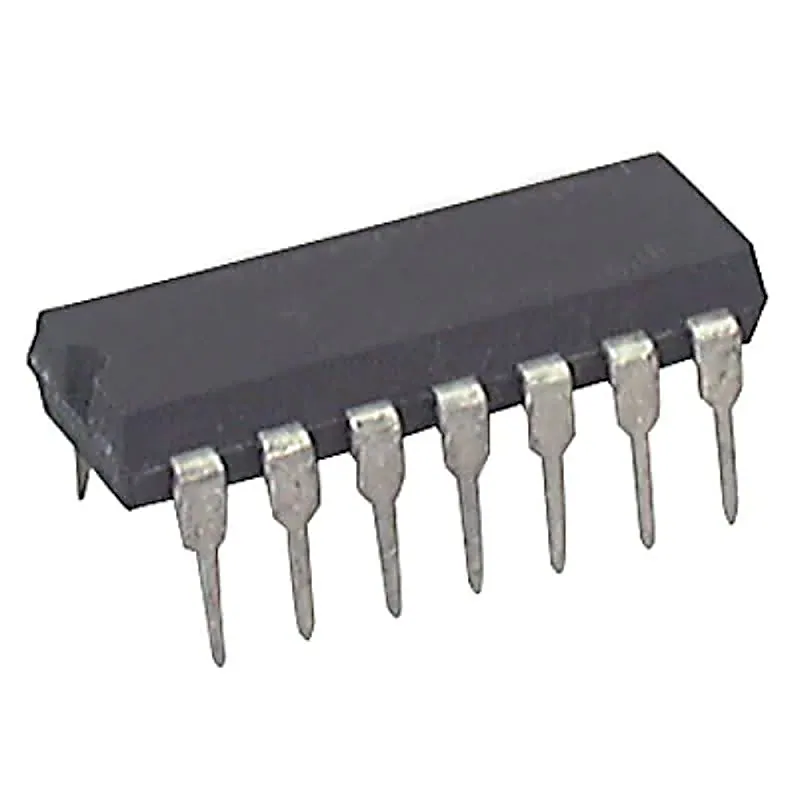

74LS379 Octal D Flip-Flop IC (74379) DIP-14 Package
74LS379 Octal D Flip-Flop IC (74379) DIP-14 Package
The 74LS379 is a 4-Bit Register with buffered common Enable. This device is similar to the 74LS175 but features the common Enable rather then common Master Reset. Features :- 8-Bit High Speed Parallel Registers Positive Edge-Triggered D-Type Flip Flops Fully Buffered Common Clock and Enable Inputs T
+ 18% GST (added at checkout)
In stock — 2097 units ready
- 8-Bit High Speed Parallel Registers
- Positive Edge-Triggered D-Type Flip Flops
- Fully Buffered Common Clock and Enable Inputs
- True and Complement Outputs
- Input Clamp Diodes Limit High Speed Termination Effects
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- Input Clamp Diode Voltage : -1.5V
- Output HIGH Voltage : 3.5V
- Output LOW Voltage : 0.5V
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74LS379 is a 4-Bit Register with buffered common Enable. This device is similar to the 74LS175 but features the common Enable rather then common Master Reset. Features :- 8-Bit High Speed Parallel Registers Positive Edge-Triggered D-Type Flip Flops Fully Buffered Common Clock and Enable Inputs True and Complement Outputs Input Clamp Diodes Limit High Speed Termination Effects Specifications :- Supply Voltage : 4.75 - 5.25V Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V Input Clamp Diode Voltage : -1.5V Output HIGH Voltage : 3.5V Output LOW Voltage : 0.5V Package Includes :- 1 X 74LS379 Octal D Flip-Flop IC (74379) DIP-14 Package
