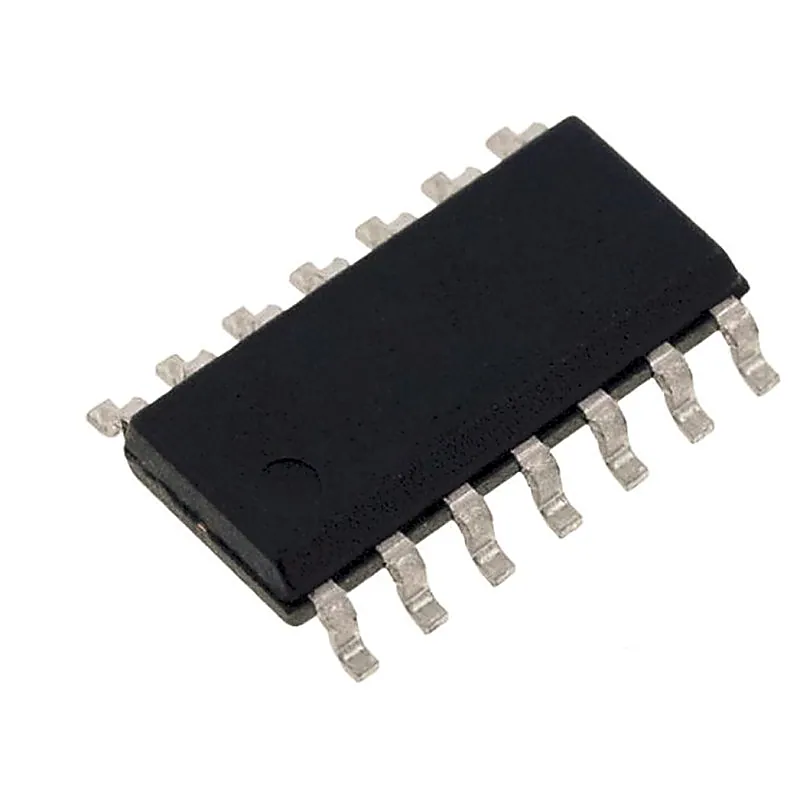

74LS38 IC - (SMD Package) Quad 2-input NAND Buffer IC (7438 IC)
74LS38 IC - (SMD Package) Quad 2-input NAND Buffer IC (7438 IC)
This device contains four independent gates, each of which performs the logic NAND function. The open-collector outputs require external pull-up resistors for proper logical operation. Features :- Four Independent NAND Buffer Gates. Open Collector Outputs Require External Pull-Up Resistors. Fast Swi
+ 18% GST (added at checkout)
In stock — 421 units ready
- Four Independent NAND Buffer Gates.
- Open Collector Outputs Require External Pull-Up Resistors.
- Fast Switching Times.
- Operating Temperature up to 70°C.
- Supply Voltage : 4.75 - 5.25V
- HIGH Level Input Voltage : 2V
- LOW Level Input Voltage : 0.8V
- HIGH Level Output Voltage : 5.5V
- LOW Level Output Current : 24mA
- Free Air Operating Temperature : 70°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This device contains four independent gates, each of which performs the logic NAND function. The open-collector outputs require external pull-up resistors for proper logical operation. Features :- Four Independent NAND Buffer Gates. Open Collector Outputs Require External Pull-Up Resistors. Fast Switching Times. Operating Temperature up to 70°C. Specifications :- Supply Voltage : 4.75 - 5.25V HIGH Level Input Voltage : 2V LOW Level Input Voltage : 0.8V HIGH Level Output Voltage : 5.5V LOW Level Output Current : 24mA Free Air Operating Temperature : 70°C Package Includes :- 1 X 74LS38 IC - (SMD Package) Quad 2-input NAND Buffer IC (7438 IC)
