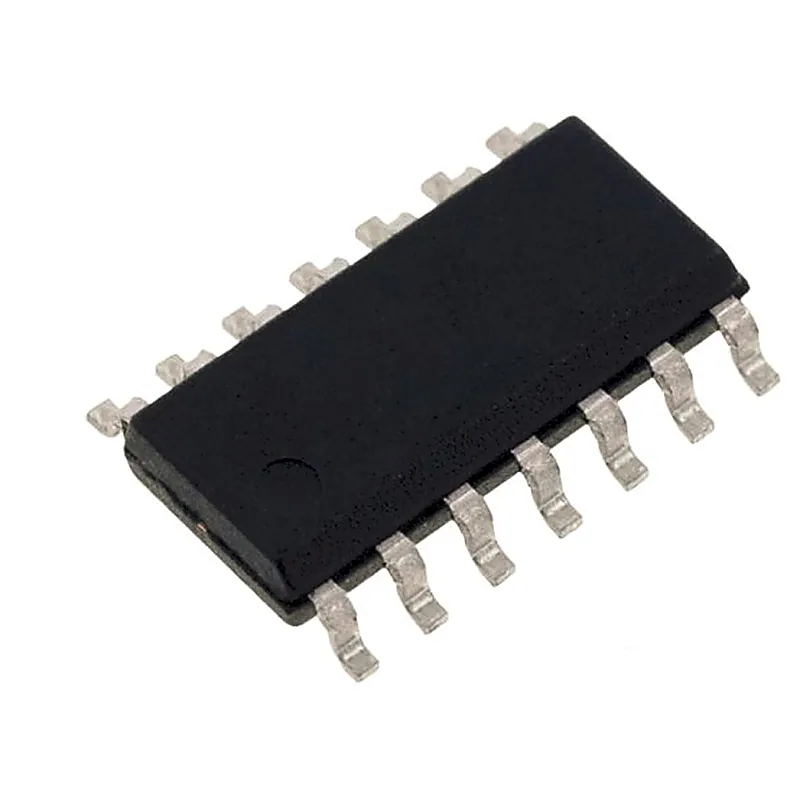

74LS54 IC - (SMD Package) Quad 2-Input AND/OR Inverter Gate IC (7454 IC)
74LS54 IC - (SMD Package) Quad 2-Input AND/OR Inverter Gate IC (7454 IC)
These device contain 4-wide AND-OR-INVERT gates. The 74LS54 are characterized for operation over the full military temperature range of 0 degree C to 70 degree C. Specifications :- Supply Voltage : 4.5 - 5.5V Operating Ambient Temperature Range : 70°C Input HIGH Voltage : 2.0V Input LOW Voltage : 0.
+ 18% GST (added at checkout)
In stock — 2478 units ready
- Supply Voltage : 4.5 - 5.5V
- Operating Ambient Temperature Range : 70°C
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.7V
- Input Clamp Diode Voltage : -1.5V
- Output HIGH Voltage : 3.5V
- Output LOW Voltage : 0.4V
- Input HIGH Current : 20µA
- Input LOW Current : -0.4mA
- Short Circuit Current : -100mA
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
These device contain 4-wide AND-OR-INVERT gates. The 74LS54 are characterized for operation over the full military temperature range of 0 degree C to 70 degree C. Specifications :- Supply Voltage : 4.5 - 5.5V Operating Ambient Temperature Range : 70°C Input HIGH Voltage : 2.0V Input LOW Voltage : 0.7V Input Clamp Diode Voltage : -1.5V Output HIGH Voltage : 3.5V Output LOW Voltage : 0.4V Input HIGH Current : 20µA Input LOW Current : -0.4mA Short Circuit Current : -100mA Package Includes :- 1 X 74LS54 IC - (SMD Package) Quad 2-Input AND/OR Inverter Gate IC (7454 IC)
