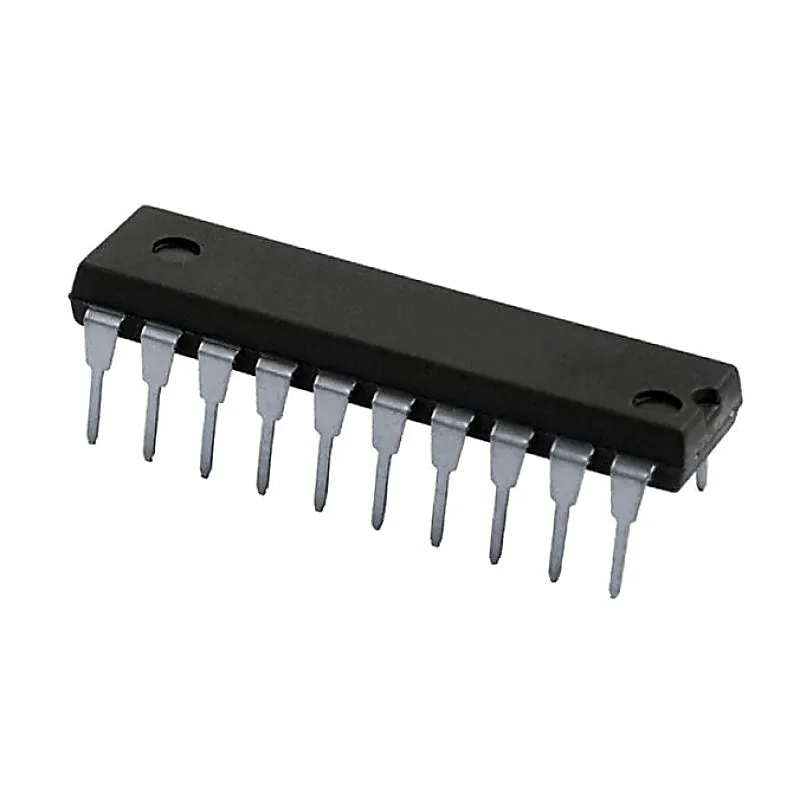

74LS573 3-State Octal D-Type Latch IC (74573) DIP-20 Package
74LS573 3-State Octal D-Type Latch IC (74573) DIP-20 Package
The ’LS573 is a high speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs. This device is functionally identical to the ’LS373, but has different pinouts. Features :- Inputs and outputs on opposite sides of package allowing easy interface with microp
+ 18% GST (added at checkout)
In stock — 1865 units ready
- Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
- Useful as input or output port for microprocessors
- Functionally identical to ’LS373
- Input clamp diodes limit high speed termination effects
- Fully TTL and CMOS compatible
- Supply Voltage : 4.75 to 5.25V
- High Level Input Voltage : 2V
- Low Level Input Voltage : 0.8V
- High Level Input Current : -2.6V
- Low Level Output Current : 24V
- Free Air Operating Temperature : 70˚C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The ’LS573 is a high speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs. This device is functionally identical to the ’LS373, but has different pinouts. Features :- Inputs and outputs on opposite sides of package allowing easy interface with microprocessors Useful as input or output port for microprocessors Functionally identical to ’LS373 Input clamp diodes limit high speed termination effects Fully TTL and CMOS compatible Specifications :- Supply Voltage : 4.75 to 5.25V High Level Input Voltage : 2V Low Level Input Voltage : 0.8V High Level Input Current : -2.6V Low Level Output Current : 24V Free Air Operating Temperature : 70˚C Package Includes :- 1 X 74LS573 3-State Octal D-Type Latch IC (74573) DIP-20 Package
