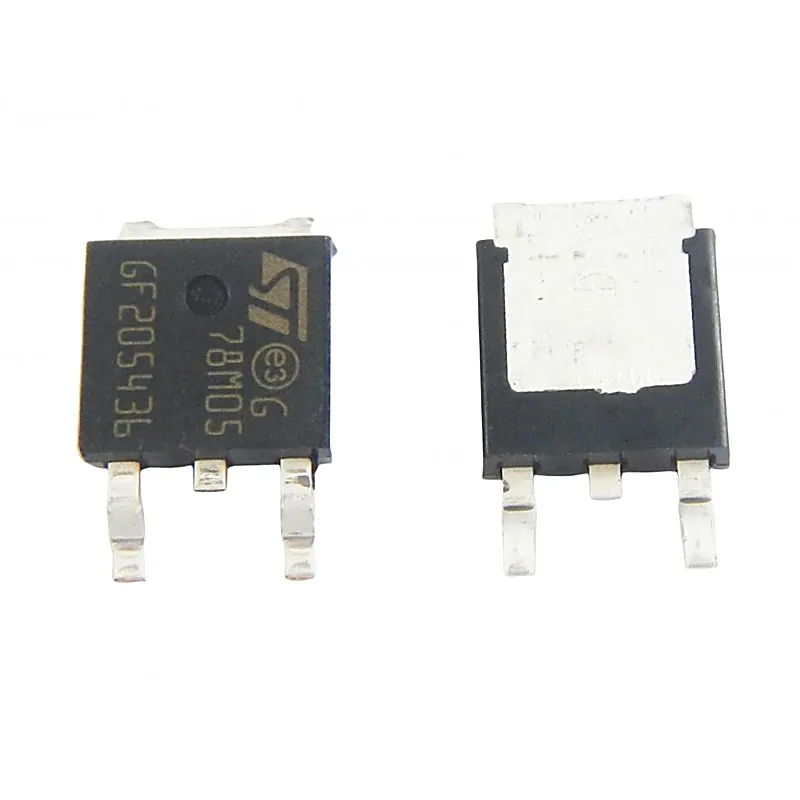

78M05 - 7805 - (SMD TO-252/DPAK Package) - 5V Positive Voltage Regulator IC

The 78M05 series of three-terminal positive regulators are available in the TO-220/D-PAK package with several fixed output voltages making it useful in a wide range of applications. Features:- • Output Current up to 0.5A • Output Voltages of 5, 6, 8, 12, 15, 18, 24V • Thermal Overload Protection • Short Circuit Protection • Output Transistor Safe Operating Area (SOA)Protection Specification:- Symbol Parameter Value Unit VI Input Voltage (for VO = 5V to 18V) (for VO = 24V) 35 V 40 RθJC Thermal Resistance Junction-Case (Note1) TO-220 (Tc = +25°C) 2.5 °C/W RθJA Thermal Resistance Junction-Air: TO-220 (Ta = +25°C) 66 D-PAK (Ta = +25°C) 92 °C/W TOPR Operating Junction Temperature Range 0 ~ +150 °C TSTG Storage Temperature Range -65 ~ +150 °C Related Document:- 78M05 SMD Data Sheet
