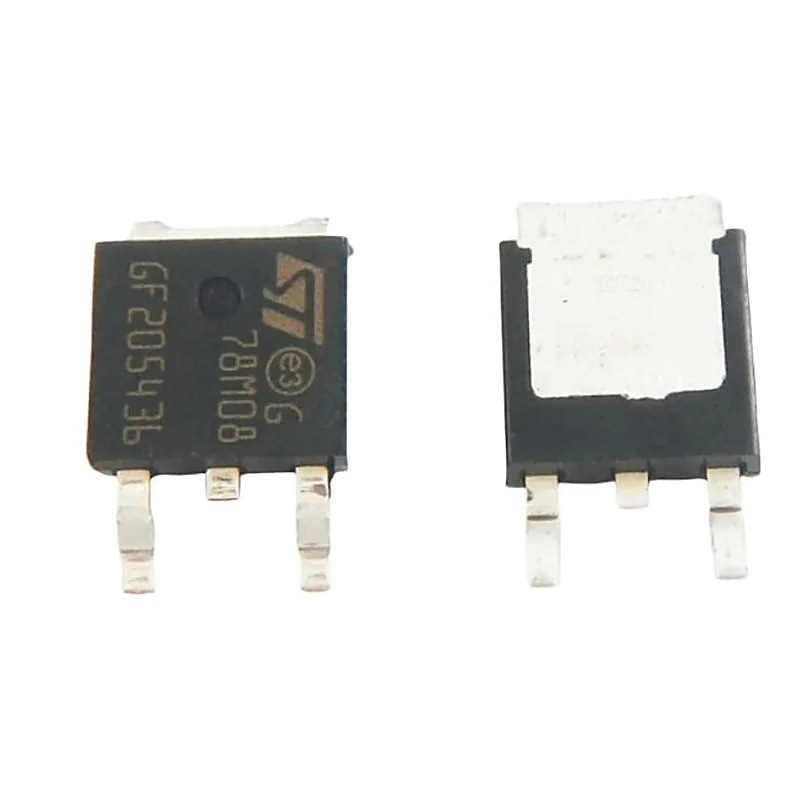

78M08 - 7808 IC - (SMD TO-252/DPAK Package) - 8V Positive Voltage Regulator IC

The 78M08-7808 is a positive voltage regulators are identical to the popular 78M08 devices, except that they are specified for only half the output current. Like the 78M08 devices, the 78M08 three−terminal regulators are intended for local, on−card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe−area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heat sinking is 500 mA. Features:- • No External Components Required • Internal Thermal Overload Protection • Internal Short Circuit Current Limiting • Output Transistor Safe−Area Compensation • 78M08 High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These are Pb−Free Devices Specification:- Symbol Parameter Value Unit VI Input Voltage (5.0 V−18 V) (20 V−24V) 35 V 40 TJ Operating Junction Temperature Range 150 °C TSTG Storage Temperature Range −65 to +150 °C Related Document:- 78M08-7808 SMD Data Sheet
