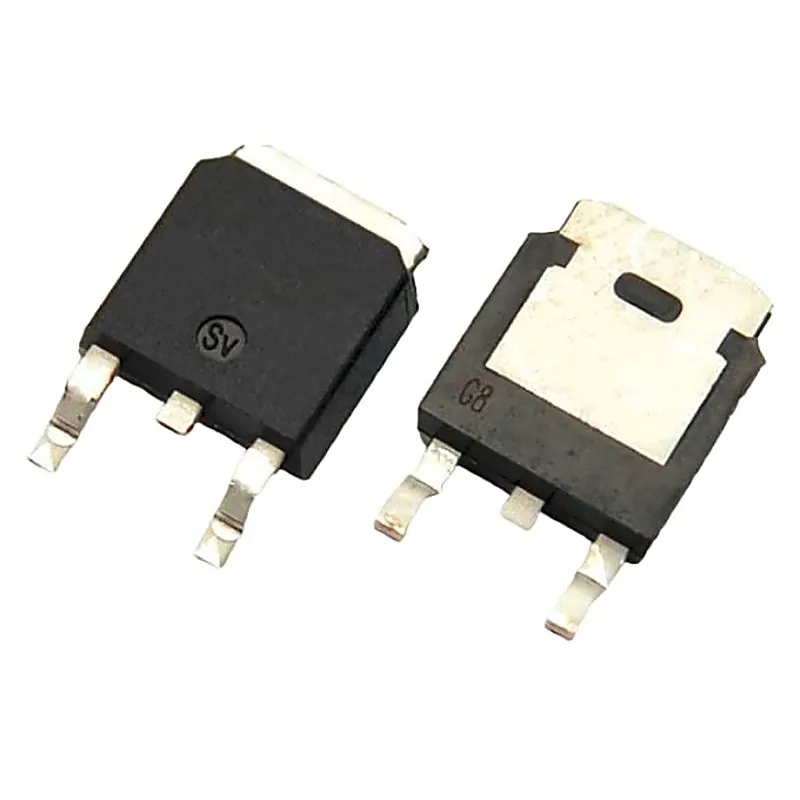

79M12 - 7912 - (SMD TO-252/DPAK Package) - 12V Negative Voltage Regulator IC

The 78M12 is a fixed output negative voltage regulators are intended as complements to the popular 78M12 series devices. Available in fixed output voltage options of −5.0 V, −8.0 V, −12 V and −15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heat sinking they can deliver output currents in excess of 0.5 A. Features:- ● Output Voltage: -5 & -12V ● Output current up to 1A ● No external components required ● Internal thermal overload protection ● Internal short-circuit current limiting ● Output transistor safe-area compensation ● Output voltage offered in 4% tolerance Specification:- Symbol Parameter Rating Unit VI Input Voltage -35 V PD Power Dissipation 65 °C/W TJ Operating Temperature Range −40 to +150 °C TSTG Storage Temperature Range −65 to +150 °C Related Document:- 79M12 SMD Data Sheet
