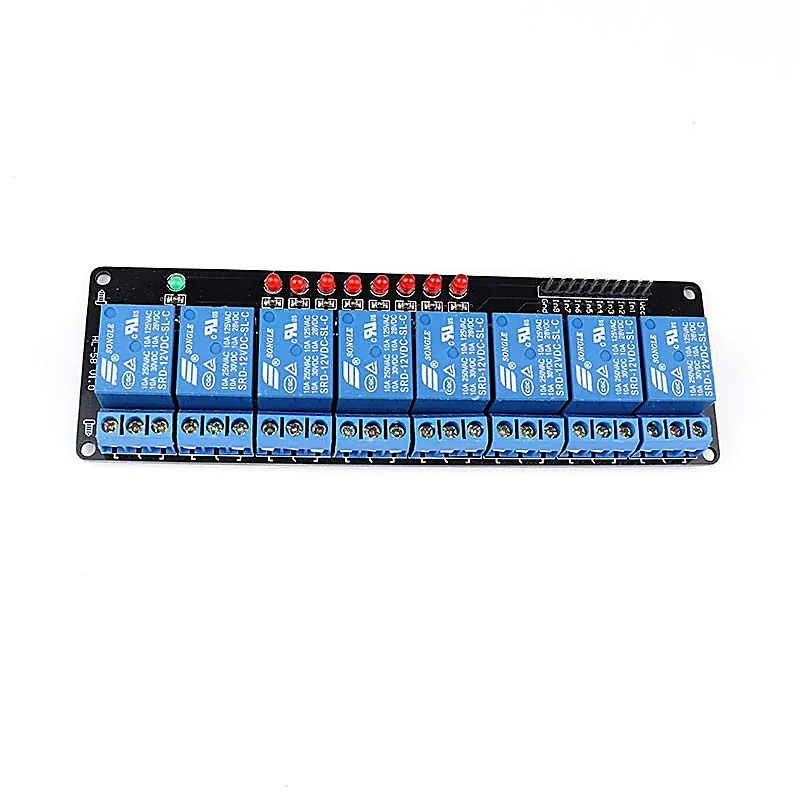

8 Channel 12V Relay Module
8 Channel 12V Relay Module
This is a 12V 8-Channel Relay interface board, Be able to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic). Features: Using high-current relay, AC250V 10A DC30V 10A. Contact som
+ 18% GST (added at checkout)
In stock — 28 units ready
- Using high-current relay, AC250V 10A DC30V 10A.
- Contact some independent wiring, safe and reliable.
- The standard interface can be extended to a variety of development boards.
- With fixed screw holes for easy installation.
- Suitable for a variety of platforms such as 8051/AVR/AVR/ARM.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a 12V 8-Channel Relay interface board, Be able to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic). Features: Using high-current relay, AC250V 10A DC30V 10A. Contact some independent wiring, safe and reliable. The standard interface can be extended to a variety of development boards. With fixed screw holes for easy installation. Suitable for a variety of platforms such as 8051/AVR/AVR/ARM. Package Includes: 1 x 8 Channel 12V Relay Module Specifications :- Trigger Voltage (VDC) 12 Trigger Current (mA) 20 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Operating Temperature (C) -40 to 85 Opt. Relative Humidity(RH) 20% 85% Storage condition () 65 to 125 Length (mm) 138 Width (mm) 43 Height (mm) 17 Weight (gm) 98
