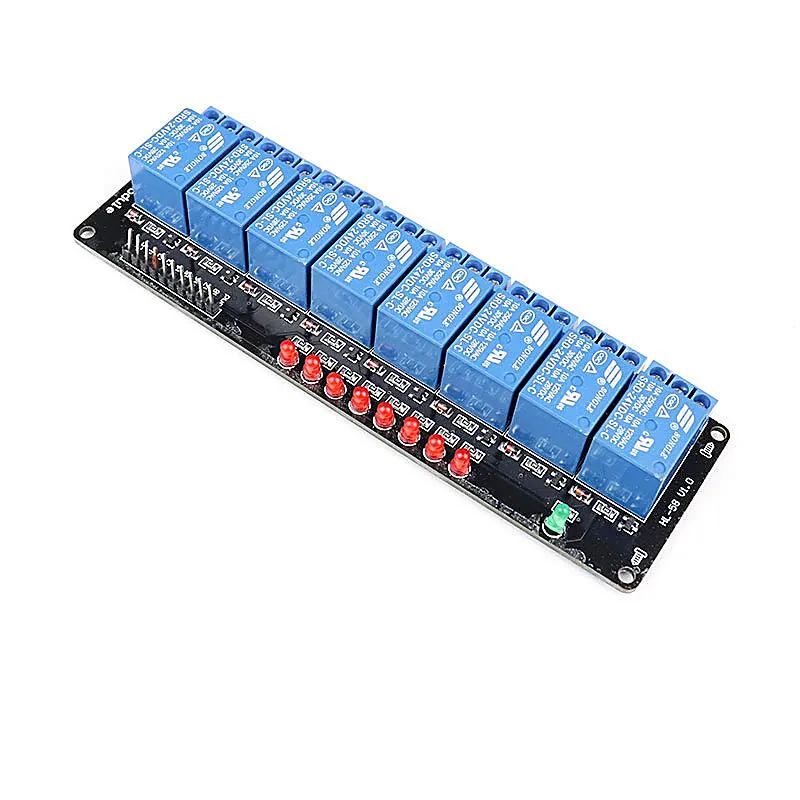

8 Channel 24V Relay Module
8 Channel 24V Relay Module
A general-purpose 8 SPDT channel relay board (power supply 24VDC) for switching high-current electrical loads (both AC and DC) such as motors, lights, pumps, contactors and more. With this relay board, any logic-level signal from 3V up to 30V can be used to activate a relay (it may be controlled dir
+ 18% GST (added at checkout)
In stock — 2 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
A general-purpose 8 SPDT channel relay board (power supply 24VDC) for switching high-current electrical loads (both AC and DC) such as motors, lights, pumps, contactors and more. With this relay board, any logic-level signal from 3V up to 30V can be used to activate a relay (it may be controlled directly by microcontroller TTL logic as well). It can be used successfully for example with PIC, AVR, ARM microcontroller, Raspberry PI, Arduino outputs and others. Features: Header connector for connecting power and trigger voltage. LED on each channel indicates relay status. Screw terminal connector for easy relay output and aux power connection. Package Includes: 1 x 24V 8 Channel Relay Module. Specifications :- Channel 8 Trigger Voltage (VDC) 24 Trigger Current (mA) 20 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Operating Temperature (C) -40 to 85 Opt. Relative Humidity(RH) 20% 85% Storage condition () 65 to 125 Length (mm) 138 Width (mm) 43 Height (mm) 17 Weight (gm) 100
