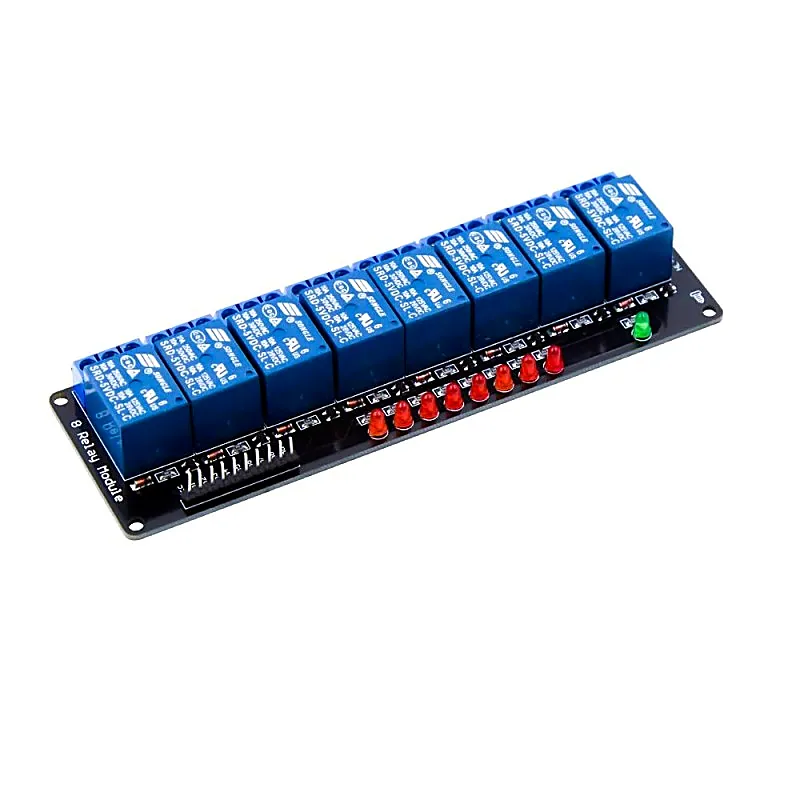

8 Channel 5V Relay Module

It is a 5V 8 Channel Relay Module. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red).All module size interfaces can be directly connected through the terminal block, which is convenient and practical. Features: The 8550 transistor drive, drivability. A fixed bolt holes for easy installation. It has a relay status indicator led Power LED(Green), 8 relay status indicator LED(Red) Relay control interface by single-chip IO. Low-level suction close, high-level release. Easy to use, simple 3 line structure. Package Includes: 1 x 5V 8 Channel Relay Module. Specifications :- Operating Voltage (VDC) 3 ~ 5 Trigger Voltage (VDC) 5 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Storage condition () 65 to 125 Operating Temperature (C) -40 to 85 Length (mm) 138 Width (mm) 43 Height (mm) 17 Weight (gm) 100
