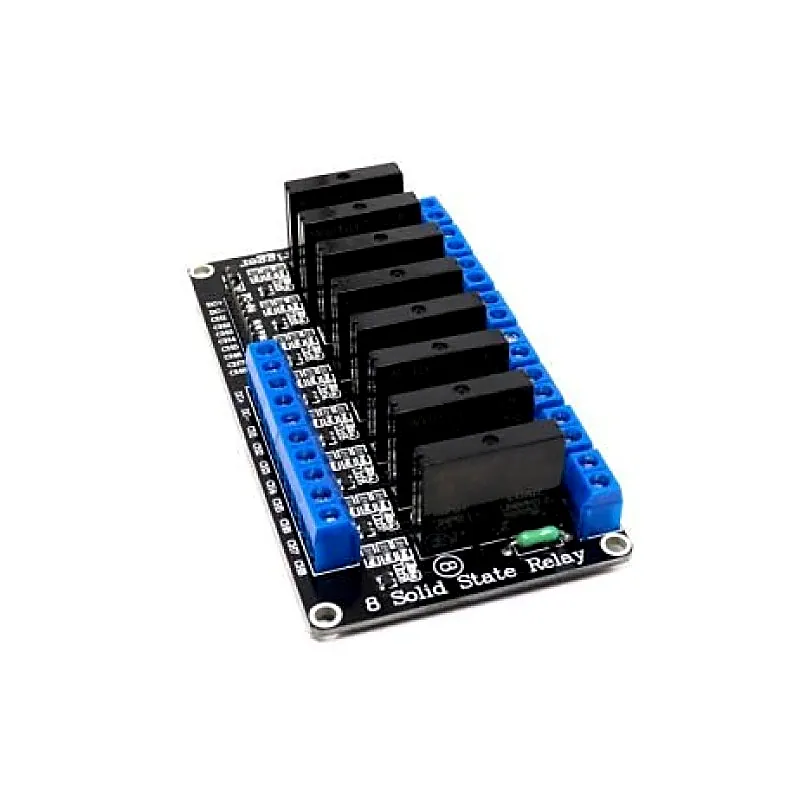

8 Channel 5V SSR G3MB-202P Solid State Relay Module (Low level Trigger)

This 8 Channel 5V SSR G3MB-202P Solid State Relay Module (Low level Trigger) can control up to 2A at 240VAC. This is an 8 Channel SSR relay module, each relay channel has3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed). A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan in compared to the traditional mechanic relay. When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load. 8 Channel 5V SSR Solid State Relay Module (Low level Trigger) Can be directly controlled by Arduino and other microcontrollers It is Eight channels relay interface boardable to control various appliances and equipment with large current. Input parts : DC+ : connect power positive DC- : connect power negative CH1 : relay module signal trigger point (Effective low-level trigger) CH2 : relay module signal trigger point (Effective low-level trigger) CH3 : relay module signal trigger point (Effective low-level trigger) CH4 : relay module signal trigger point (Effective low-level trigger) CH5 : 5-way relay module signal triggering end (low-level trigger valid) CH6 : 6-way relay module signal triggering end (low-level trigger valid) CH7 : 7-way relay module signal triggering end (low-level trigger valid) CH8 : 8-channel relay module signal triggering end (low-level trigger valid) Note : Power must be DC voltage and need to be consistent with the voltage relay. The Board is available in Red Color. This Relay module is a Low-Level Trigger Module. Please note it before purchase. Product Image May vary in terms of Brand Name on relay according to the availability of Supplier Features : 8 channel 2 AMP Solid State Relay board Control 8 loads of up to 2 amps each at 120V or 240V AC. Good for lighting, holiday displays etc. Has been assembled, and the electrical test passed. Led indicator for each relay. Use it to control various appliances and other equipment with a large current. It can be controlled directly by Microcontroller Package Includes : 1 x 5V 8 Channel SSR Solid State Relay Module Specifications :- Trigger type Low Level Trigger Part Number G3MB-202P Working Current(mA) 16 Trigger Current (mA) 2 Trigger Voltage (VDC) 5 Switching Voltage (VAC) 240@2A Isolation Phototriac Zero Cross Yes Length (mm) 130 Width (mm) 60 Height (mm) 15 Weight (gm) 70
