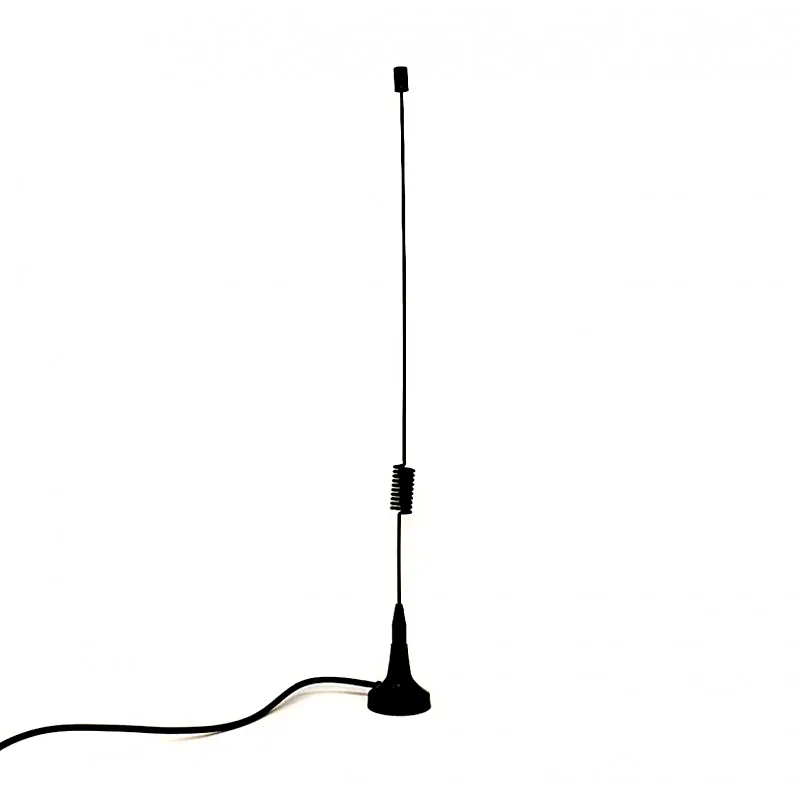

824 – 960 MHz And 1710 – 2170 MHz Dual-Band 4/6 dBi Magnetic Mount Antenna

This is Magnetic Dual-Band Mount Antenna having a frequency of 824 960 MHz & 1710 2170 MHz and gain of 4/6 dBi. This antenna is supported to GSM FCT and other GSM Module/Modems. The biggest advantage to dual-band antennas is their ability to provide a strong, stable wireless connection is often difficult to reach locations. For this reason, they are often used in devices such as cellular or dual-band wireless access points. Application: GSM, 3G Features: Compact Size Low Cost SMA Male Any cable length (suggested <5m) Package Includes: 1 x 824 960 MHz & 1710 2170 MHz Dual-Band 4/6 dBi Magnetic Mount Antenna Specifications :- Frequency (MHz) 824 960 MHz & 1710 2170 MHz Gain 4 / 6 dBi Impedance () 50 VSWR < 2.0 Polarization Linear Power Handling (W) 10 HPBW H: 3600 ; V: 300 / 400 Cable RG174 Connector SMA Male Plug Operational Temperature -30 to 60 C Humidity 5 75% Housing Carbon Steel Powder Coated Dimension (mm) 280 x 27 Weight 100gm Cable Length (Meter) 3
