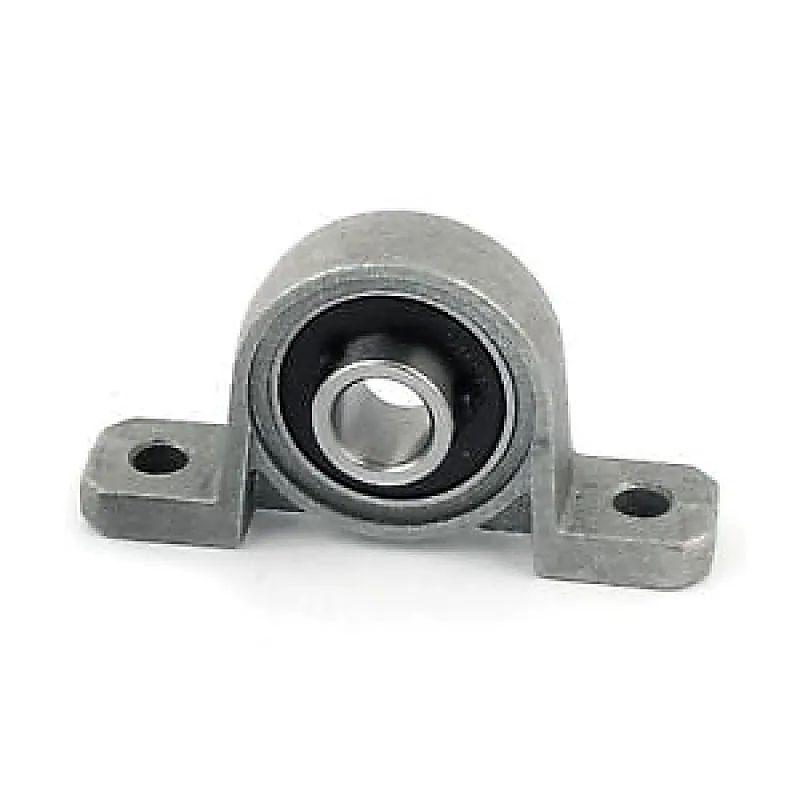

8mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP08

The 8mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP08 comes with top set screws which makes the inner ring of the bearing fix on the shaft. It is very convenient to install. There is a certain self-aligning ability for the bearing, so it can be mounted on a general accuracy rack. Well-adapted and widely used. Two-bolt housing with ball bearing insert for ready-to-mount installation. Setscrew locking collar for secure attachment to the guided shaft. Between the inner bearing and outer fixing ring angle can fine tune. Features : Durable with high precision Can withstand great weight The angle between the inner bearing and the outer fixing ring is adjustable Easy to install Package Includes : 1 x 8mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP08 Specifications :- Model KP08 Material Zinc Alloy Bore Diameter [B] (mm) 8 Length (mm) 55 Width (mm) 12 Height (mm) 30 Weight (gm) 25
