9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V
9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V
This 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V is used to control the speed of DC motors from 9V to 50V with a maximum power of 2000W this controller can provide up to 40A of current depending on the power supply. The board comes with a protective housing made fro
+ 18% GST (added at checkout)
In stock — 14 units ready
- Industrial Quality Board.
- Maximum Output Current of 40A.
- Maximum Output Power of 2000W
- Working Voltage From 9V to 50V.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.

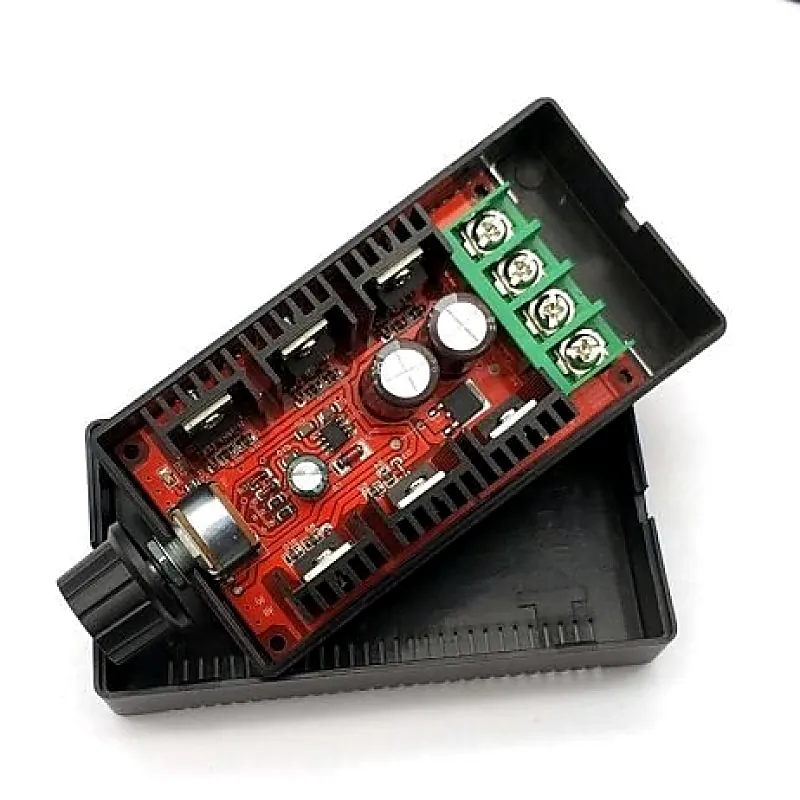

This 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V is used to control the speed of DC motors from 9V to 50V with a maximum power of 2000W this controller can provide up to 40A of current depending on the power supply. The board comes with a protective housing made from ABS plastic. The controller has 6 high-quality NCE7190A MOSFETs which are connected to the individual heatsinks. Features: Industrial Quality Board. Maximum Output Current of 40A. Maximum Output Power of 2000W Working Voltage From 9V to 50V. Package Includes: 1 x 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V Frequency 12000HZ Control Motor Power 0.01-2000W Rated Current 40A(Maximum output current) Regulation Range 5-100 % Length (mm) 90 Width (mm) 51 Height (mm) 30 Weight (gm) 93
