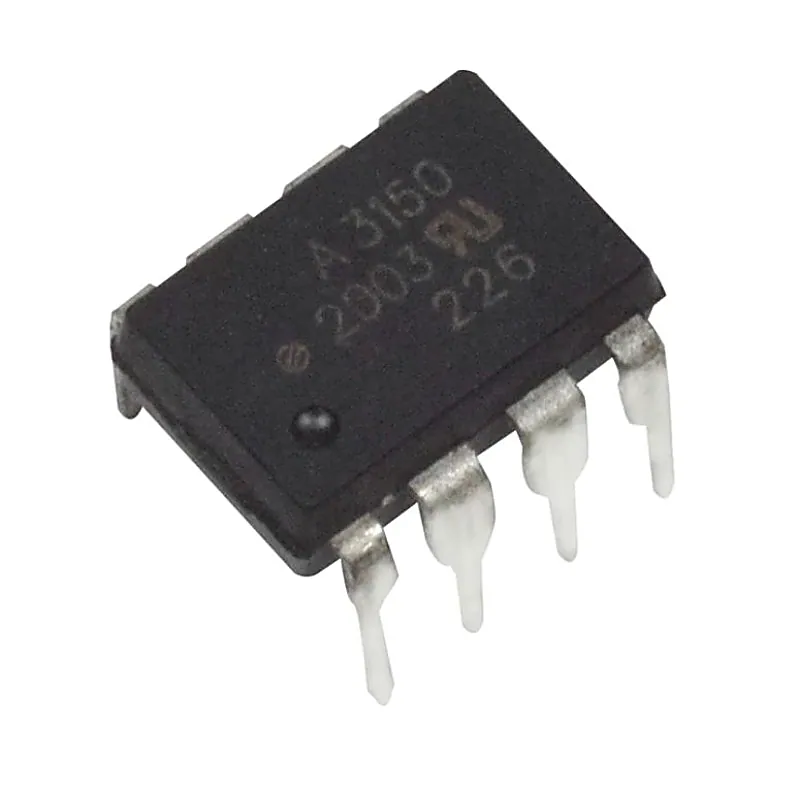

A3150 IGBT Gate Drive Optocoupler IC DIP-8 Package

A3150 Optocoupler used in motor control inverter applications, this optocoupler is perfectly suited. The output stage's large operating voltage range supplies the drive voltages needed by gate-controlled devices. This optocoupler is perfectly suited for directly driving IGBTs with ratings up to 1200V/50A due to the voltage and current it supplies. The HCPL-3150/315J can be used to drive a discrete power stage that drives the IGBT gate for IGBTs with greater ratings. Features:- 0.6A maximum peak output current 1.0V maximum low level output voltage (VOL) eliminates need for negative gate drive Under voltage lock-out protection (UVLO) with hysteresis Wide operating VCC range: 15V to 30V ±0.35-µs maximum delay between devices/channel Specifications:- Model : A3150 Type : Optocoupler No of Pins : 8 Channels : 1 Package : 8 Pin DIP Output current : 0.5A Maximum switching speed : 500nS Operating voltage range : 15 to 30V Package Includes:- 1 x A3150 IGBT Gate Drive Optocoupler IC DIP-8 Package
