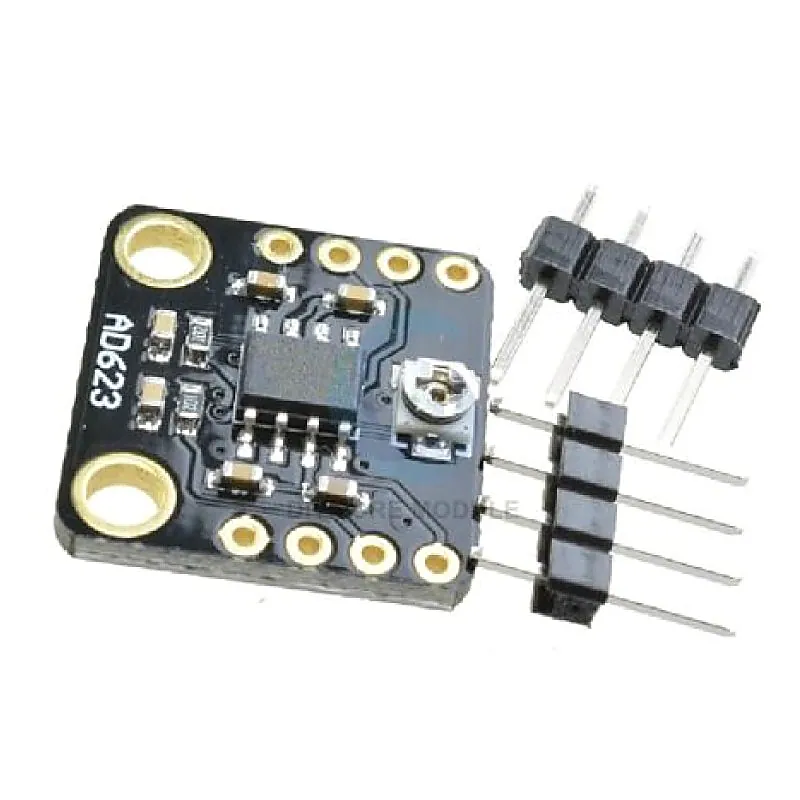

AD623 Integrated Single Supply Instrumentation Amplifier Board,Low Power Consumption 3V- 12V Wide Input Rail to Rail Output SwingAT the Firmware

The AD623 Integrated Single Supply Instrumentation Amplifier Board is a high-performance solution with low power consumption (3V-12V). It features a wide input rail-to-rail output swing, ensuring accurate signal amplification. With firmware capabilities, it offers versatile applications in instrumentation and signal processing. The board is designed for efficiency, making it an ideal choice for projects requiring precise amplification within a broad voltage range. Applications: Low-power medical instrumentation Transducer interfaces Thermocouple amplifiers Industrial process controls Difference amplifiers Low-power data acquisition Features and Specifications: Easy to use Rail-to-rail output swing Model: AD623 Type: Voltage Regulator Application: Power Supply Supply Voltage: +3 to +12V Input voltage range extends 150 mV below ground (single supply) Low power, 550 A maximum supply current Gain set with one external resistor Gain range: 1 to 1000 High-accuracy dc performance Noise: 35 nV at 1 kHz 800 kHz bandwidth (G = 1) Length: 18mm Width: 15mm Package Includes: 1 x AD623 Integrated Single Supply Instrumentation Amplifier Board,Low Power Consumption 3V- 12V Wide Input Rail to Rail Output SwingAT the Firmware
