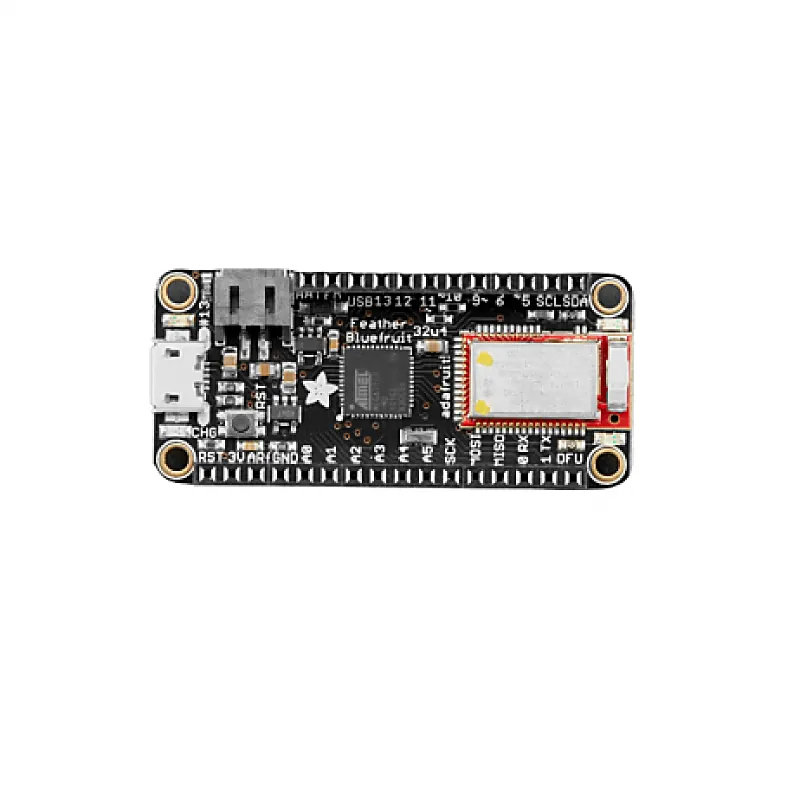

Adafruit Feather 32u4 Bluefruit LE with Stacking Headers Assembled

Adafruit Feather 32u4 Bluefruit LE with Stacking Headers Assembled
This is theAdafruit Feather 32u4 Bluefruit our take on an all-in-one Arduino-compatible + Bluetooth Low Energy with built in USB and battery charging. Its an Adafruit Feather 32u4 with a BTLE module, ready to rock! Feather is the new development board from Adafruit, and like its namesake it is thin,
+ 18% GST (added at checkout)
In stock — 2 units ready
- Measures 2.0 x 0.9 x 0.28 (51mm x 23mm x 8mm) without headers soldered in
- Light as a (large?) feather 5.7 grams
- ATmega32u4 @ 8MHz with 3.3V logic/power
- 3.3V regulator with 500mA peak current output
- USB native support, comes with USB bootloader and serial port debugging
- You also get tons of pins 20 GPIO pins
- Hardware Serial, hardware I2C, hardware SPI support
- 8 x PWM pins
- 10 x analog inputs
- Built in 100mA lipoly charger with charging status indicator LED
- Pin #13 red LED for general purpose blinking
- Power/enable pin
- 4 mounting holes
- Reset button
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is theAdafruit Feather 32u4 Bluefruit our take on an all-in-one Arduino-compatible + Bluetooth Low Energy with built in USB and battery charging. Its an Adafruit Feather 32u4 with a BTLE module, ready to rock! Feather is the new development board from Adafruit, and like its namesake it is thin, light, and lets you fly! We designed Feather to be a new standard for portable microcontroller cores.We have other boards in the Feather family, checkem out here. Bluetooth Low Energy is the hottest new low-power, 2.4GHz spectrum wireless protocol. In particular, its the only wireless protocol that you can use with iOS without needing special certification, and its supported by all modern smart phones. This makes it excellent for use in portable projects that will make use of an iOS or Android phone or tablet. It also is supported in Mac OS X and Windows 8+. Features Measures 2.0 x 0.9 x 0.28 (51mm x 23mm x 8mm) without headers soldered in Light as a (large?) feather 5.7 grams ATmega32u4 @ 8MHz with 3.3V logic/power 3.3V regulator with 500mA peak current output USB native support, comes with USB bootloader and serial port debugging You also get tons of pins 20 GPIO pins Hardware Serial, hardware I2C, hardware SPI support 8 x PWM pins 10 x analog inputs Built in 100mA lipoly charger with charging status indicator LED Pin #13 red LED for general purpose blinking Power/enable pin 4 mounting holes Reset button Package Includes: 1 x Adafruit Feather 32u4 Bluefruit LE with Stacking Headers Assembled
