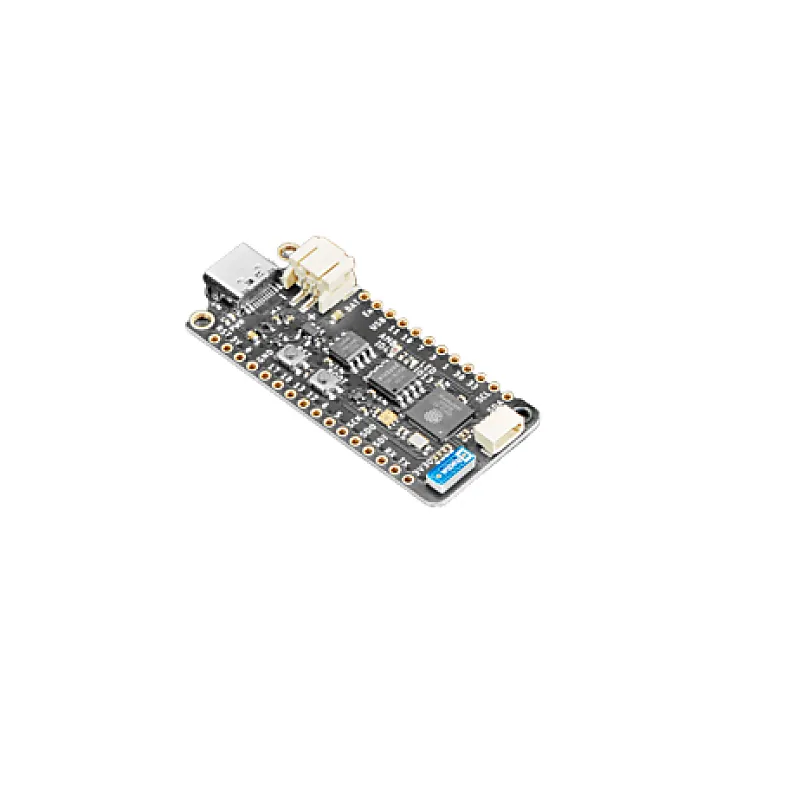

Adafruit FeatherS2 ESP32-S2 Feather Development Board

Introducing theFeatherS2 The full-featured ESP32-S2 based development board in a Feather format from Unexpected Maker. The FeatherS2 is a power house, fully souped up with16 MB of Flash memory(for firmware and file storage) and8 MB of QSPI-based external PSRAMso you can have massive storage buffers. This Feather comes with two 3.3V regulators: The first one is for the general operation of the board and the ESP32-S2, RAM and Flash. The second LDO is for you to use to connect external 3V3 modules, sensors and peripherals, and it has programmable EN control tied to GPIO21 and its connected to the deep sleep capabilities of the S2, so if the S2 goes into deep sleep, the 2nd LDO is automatically shut down for you! Both regulators are ultra low noise and have ultra low quiescent current, and both support a maximum of 700mA output. Features: QWIIC/STEMMA connector Feather format Optimized power path for low-power battery usage LiPo battery management Power (red), Charge (orange) & IO13 (blue) LEDs APA102 RGB LED (CLK IO45, DATA IO40) ALS-PT19 Ambient Light Sensor (IO14) USB-C USB back feed protection Package Includes: 1 x Adafruit FeatherS2 ESP32-S2 Feather Development Board
