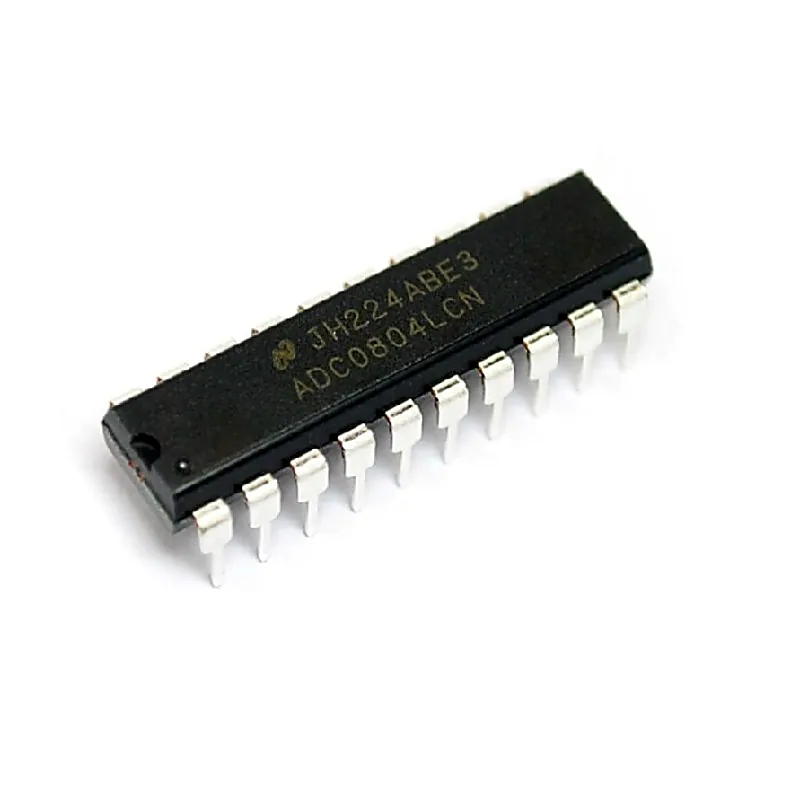

ADC0804 8-Bit Analog to Digital A/D Converter IC DIP-20 Package

The ADC0804 are CMOS 8-Bit, successive approximation A/D converters which use a modified potentiometric ladder and are designed to operate with the 8080A control bus via three-state outputs. These converters appear to the processor as memory locations or I/O ports, and hence no interfacing logic is required. The differential analog voltage input has good common mode-rejection and permits offsetting the analog zero-input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution. Features:- 80C48 and 80C80/85 Bus Compatible - No Interfacing Logic Required Conversion Time . . . . . . . . . . . . . . . . . . . . . . . . . . <100µs Easy Interface to Most Microprocessors Will Operate in a “Stand Alone” Mode Differential Analog Voltage Inputs Works with Band gap Voltage References TTL Compatible Inputs and Outputs On-Chip Clock Generator Analog Voltage Input Range (Single + 5V Supply) . . . . . . . . . . . . . . . 0V to 5V No Zero-Adjust Required 80C48 and 80C80/85 Bus Compatible - No Interfacing Logic Required Specifications:- Parameters Specification Supply Voltage 6.5 V Voltage at Any Input -0.3 V to (V+ +0.3 V) Temperature Range 0°C to 70°C Related Document:- ADC0804 IC Datasheet
