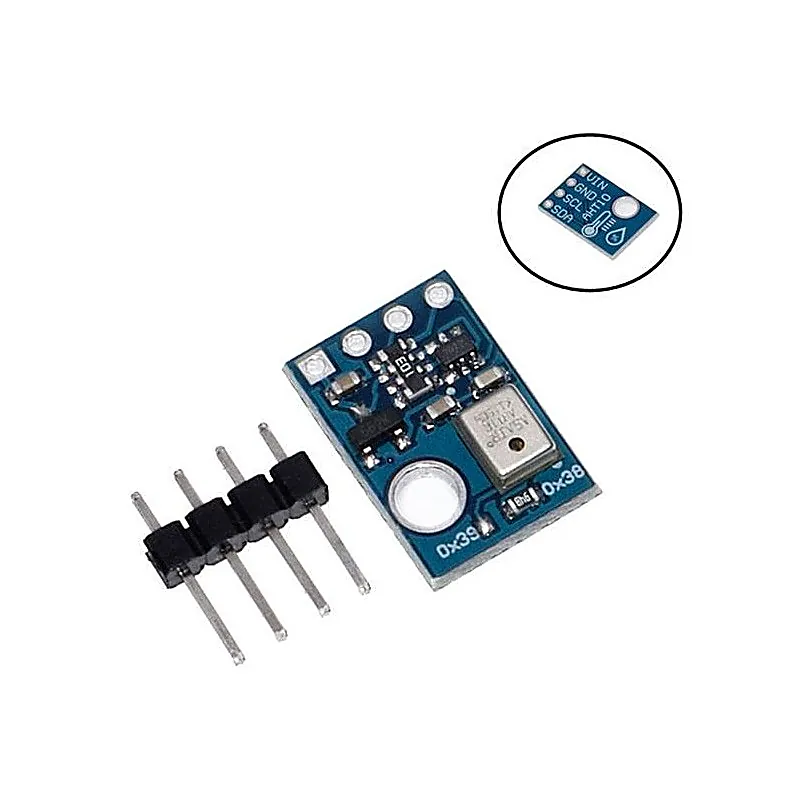

AHT10 High Precision Digital Temperature And Humidity Measurement Module

The AHT10, a new generation of temperature and humidity sensors, sets a new standard in size and intelligence: it is embedded in a dual-row flat lead less SMD package for reflow soldering with a 4 x 5mm bottom and a height of 1.6mm. The sensor outputs a calibrated digital signal in standard I 2C format. The AHT10 is equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element. Its performance has been greatly improved beyond the reliability level of previous generation sensors. The first generation of temperature and humidity sensors have been improved to make them more stable in harsh environments. This sensor gives a calibrated digital signal output in standard I2C format. The AHT10 is equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element. Its performance has been greatly improved beyond the reliability level of previous generation sensors Specifications and Features: Interface type: I2C Working voltage: 1.8 6.0 V Interface size: 4*2.54mm pitch Humidity accuracy: typical 2% Humidity resolution: 0.024% Temperature accuracy: typical 0.3 C Temperature resolution: Typical 0.01 C Working temperature: -40C85C Package Includes: 1 x AHT10 High Precision Digital Temperature And Humidity Measurement Module
