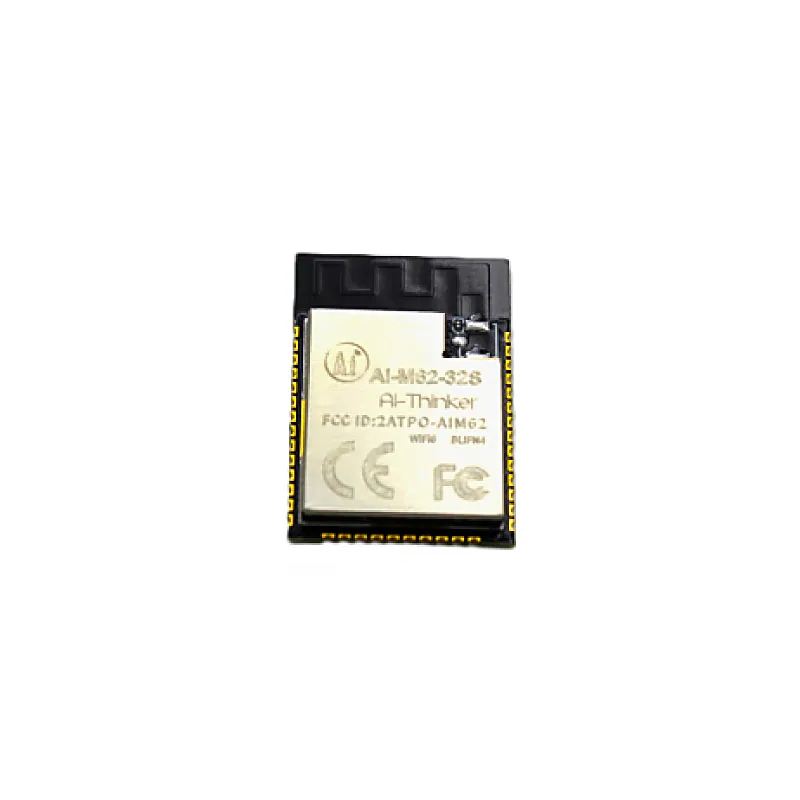

Ai Thinker Ai-M62-32S

The Ai-M62-32S is a development board designed for the Ai-M62-32S module. Ai-M62-32S is a Wi-Fi 6 + BLE 5.3 module developed by Shenzhen Ai-Thinker TechnologyCo., Ltd. The module is equipped with a BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system contains a low-power 32-bit RISC-V CPU with floating point cells, DSP units, cache, and memory, up to 320M. Ai-M62-32S module has rich peripheral interfaces, including Audio Codec, USB2.0, SDU, SD/ MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields. Ai-M62-32S module Sec Eng module supports AES / SHA / PKA / TRNG and other functions, supports mirror encryption and signature startup, to meet the needs of various security applications in the field of the Internet of Things. Features : Support 2.4GHz frequency Support IEEE 802.11 b/g/n/ax Support Thread Support Wi-Fi/BLE/Thread coexistence Support BLE5.3 Package Includes: 1 x Ai Thinker Ai-M62-32S
