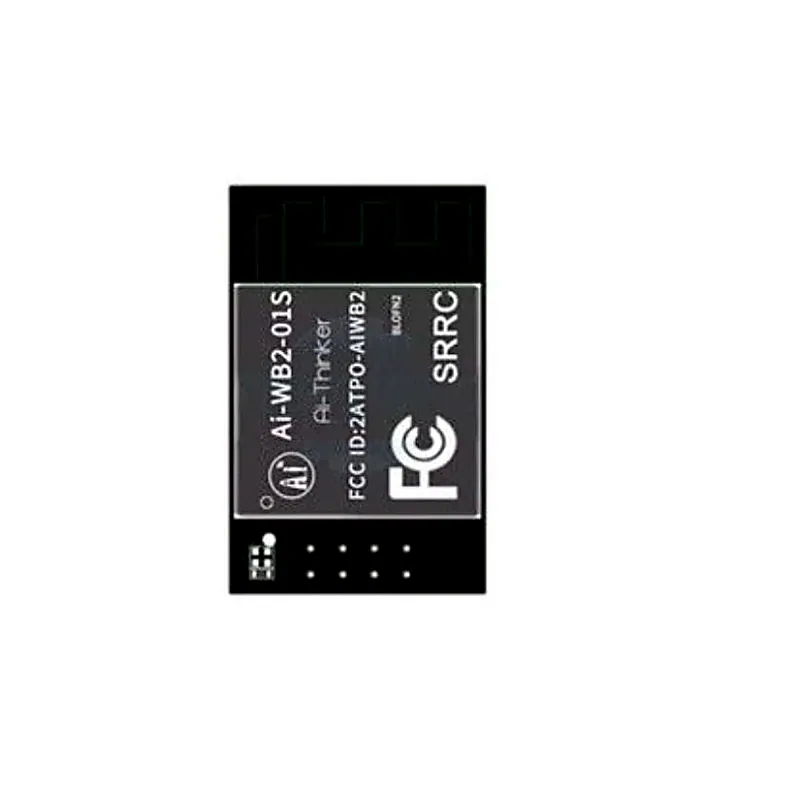

Ai Thinker Ai-WB2-01S WiFi + BLE Module

Ai Thinker Ai-WB2-01S WiFi + BLE Module Ai-WB2-01S is a Wi-Fi & BLE module developed by Shenzhen Ai-Thinker Technology Co., Ltd. This module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low power consumption and 276KB RAM. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields. Features:- DIP-8 package Supports IEEE 802.11 B/g/n protocol Wi-Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps. Bluetooth 5.0, Bluetooth Mesh Supports Station + BLE mode, Station + SoftAP + BLE mode Supports 32-bit RISC CPU and 276KB RAM Secure Startup supports Images with ECC-256 signatures Supports real-time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES 128 CTR mode Supports AES 128, 192, and 256-bit encryption engines Supports SHA-1/224/256 Support True Random Number Generator (TRNG) Public Key Accelerator (PKA), supports a large number of basic operations, and software provides a signature, verification, and other application program interface Supports UART, PWM,ADC, and GPIO Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT Supports multiple sleep modes with a deep sleep current of 12μA Universal AT instruction for a quick start Supports secondary development and integrates Windows and Linux development environments. Specifications:- Model: Ai-WB2-01S Package: DIP-8 Size: 14.5x24.5x11.2(±0.2)mm Antenna on-board: PCB antenna Frequency: 2400 ~ 2483.5MHz Operating temperature: -40℃ ~ 85℃ Storage temperature: -40℃ ~ 125℃, < 90%R Power supply Power supply voltage: 2.7V ~ 3.6V, power supply current ≥500mA Interface: UART/GPIO/ADC/PWM IO: 3 UART: rate Default value: 115200 bps Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 Flash: Default 2MByte Support expansion Package Includes:- 1 x Ai Thinker Ai-WB2-01S WiFi + BLE Module
