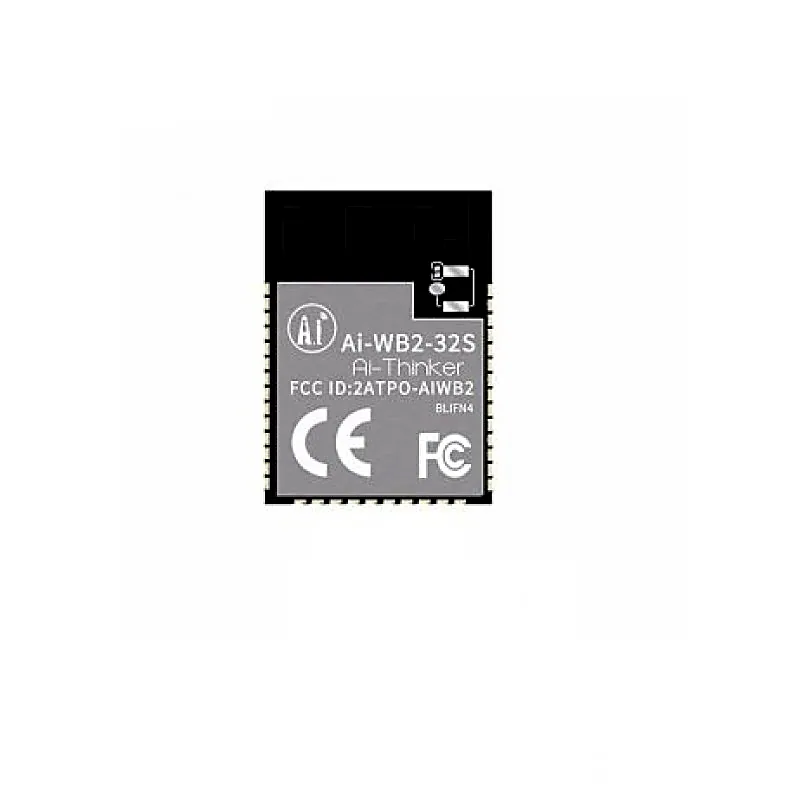

Ai-Thinker Ai-WB2-32S Module

Ai-WB2-32S is a Wi-Fi and BT module developed by Shenzhen Ai-Thinker Technology Co., LTD.The module is equipped with BL602 chip as the main processor and supports Wi-Fi.802.11b/g/n protocol and BLE 5.0 protocol.The BL602 chip has a low power 32-bit RISCCPU, 276KB RAM, and a variety of peripheral interfaces including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO.It can be widely used in the Internet of things (IoT), mobile devices, wearable electronic devices, smart home and other fields. Features: Support IEEE 802.11 b/g/n protocol Wi-Fi security supports Wi-Fi WMM/WMM-PS/WPA/WPA2 /WPS Supports 20/40MHz bandwidth with a maximum speed of 150 Mbps Support BLE working mode, support BLE4.2 protocol Support Station , Station + SoftAP , SoftAP mode Support 32-bit XT804 CPU288KB RAM MCU has built-in Tee security engine, and the code can distinguish security events fromnon-security events Integrated SASC/TIPC, memory and internal modules/interfaces can be configuredwithsecurity attributes to prevent unsafe code access Enable firmware signature mechanism for secure Boot/upgrade With firmware encryption function to enhance code security Firmware encryption keys are distributed using asymmetric algorithms for enhancedkeysecurity Hardware encryption module: RC4256, AES128, DES/3DES, SHA1/MD5, CRC32, 2048RSA, true random number generator Integrated Wi-Fi MAC/BB/RF/PA/LNA/Bluetooth Supports secondary development and integrates Windows and Linux development environments Supply voltage: 2.7V ~ 3.6V, Antenna: PCB on board, IPEX connector Package Includes: 1 x Ai-Thinker Ai-WB2-32S Module Attachments : Download
