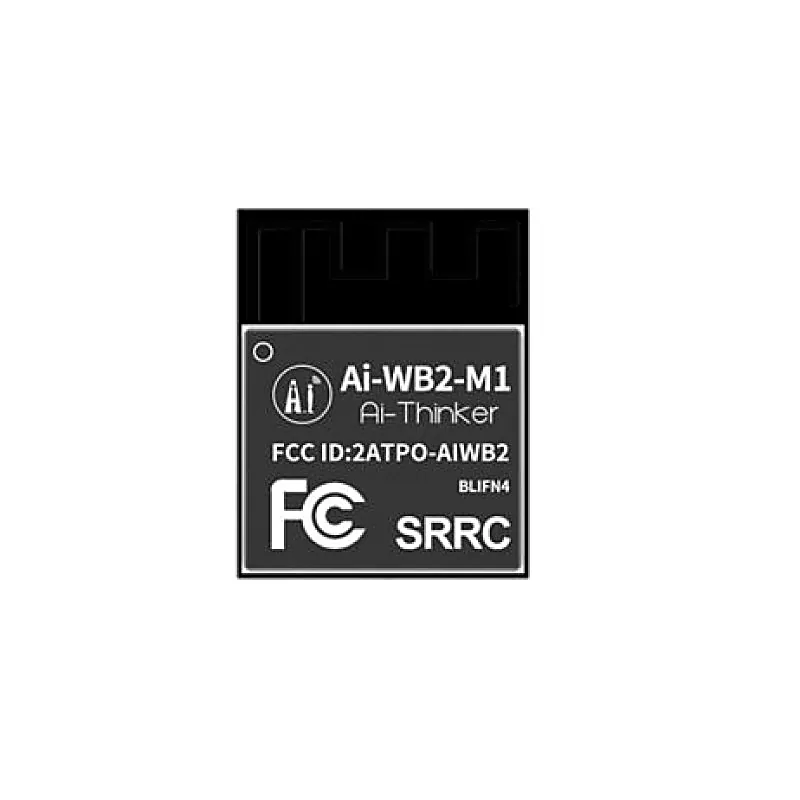

Ai-Thinker Ai-WB2-M1 Module

Ai WB2 01M is a Wi-Fi&BT module developed by Shenzhen Ai Thinker Technology Co., LTD. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low power 32 bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO, etc. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields. Features: Support IEEE 802.11 b/g/n protocol Wi Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 Support 20MHz bandwidth and Max rate is 72.2 Mbps Bluetooth BLE 5.0, Bluetooth Mesh Support Station + BLE moderation + SoftAP + BLE mode Support 32-bit RISC CPU276KB RAM Secure start-up supports mirroring with ECC 256 signature Support QSPI/SPI Flash On The Fly AES Decryption, support AES 128 CTR mode Support AES 128/192/256-bit encryption engine Support SHA 1/224/256 Support true Random number generator (TRNG) Public key Accelerator (PKA), supports a large number of basic operations, the software provides signature, verification, and other application program interface Support SDIOSPIUARTI2CIR remotePWMADCDACPIRGPIO etc Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT Support a variety of sleep modes, deep sleep current 12A Universal AT instruction for a quick start Support secondary development, integrated Windows, and Linux development environment Package Includes: 1 x Ai-Thinker Ai-WB2-M1 Module Attachments : Download
